Wanner™ Hydra-Cell^® Pro Pumps for Car Washes

Flow rates from 0.80 to 36.5 GPM at pressures from 50 to 1500 PSI
Call us at 908.362.9981 to speak with a sales engineer or Send us an inquiry

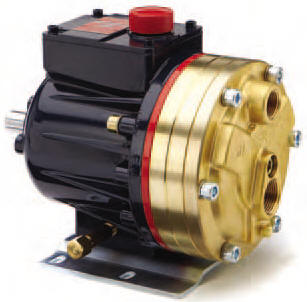

The Wanner™ Hydra-Cell^® Pro model D10, H25 and D35 pumps are the most reliable high pressure pump design for car washes. Renowned for their reliability and low maintenance requirements, we are the best source for replacement Hydra-Cell Pumps and parts.



Our personnel have been providing sales and engineering support for Wanner Engineering Hydra-Cell pumps for 34 years; we have been factory trained for trouble shooting and repairs.  We have worked with some of the worlds largest suppliers of car wash systems and have supported car washes all over the world.  When you call or email our office, you are connected to a person that has been trained in the design, application and repair of Hydra-Cell Pumps.  We can get you any part that you need at significantly discounted prices because of our Factory Direct Business model.  You cannot source Hydra-Cell Pro Pumps online for a lesser cost - we did our homework, our prices are the lowest you will find and since we are one of the oldest sales organizations for Wanner Engineering, you are not likely to find anyone more knowledgeable than we are when it comes to Hydra-Cell Prop Pumps for car washes.



The model D10 pump is often used as a prep-gun or "bumper blaster" application supporting up to (2) high pressure spray wands. Over the years the part numbers have evolved to reflect upgrades in the base pump design; in the 1990's the part number was D10XLBNHFECA, then in the early 2000's it was D10XKBTHFECA and effective January 2024 the belt-driven version of the D10 Hydra-Cell Pro pump is D10XPBTHFECA.  We sell them for $1500 + UPS shipping.  The direct drive model is signified by replacing the "X" with an "E" in the part number and costs the same.



The original higher flowed ate Hydra-Cell Pump for car washes  was the model D25 and it had a 1" diameter shaft, however that was later replaced by the H25 model having a 1.125" diameter shaft supported by oversized Timken roller bearings which boosted the hydraulic end service life to to where it is now.  In the 1990's the part number was H25XBTHFECA and has since chnaged to H25XKBTHFECA. We sell them for $3600 + UPS shipping.  The direct drive model is signified by replacing the "X" with an "E" in the part number and costs the same.



Following is a list of the most common Hydra-Cell Pro Pump models and pump/motor assemblies used at car washes:



	$1500 + UPS shipping 1 business day lead time  Prep-Gun, "bumper blaster", Model D10XPBTHFECA (aka. D10XKBTHFECA prior to 1/15/2024) for belt-drive, 8.1 GPM @ 1450 RPM Prep-Gun, "bumper blaster", Model D10EPBTHFECA (aka. D10EKBTHFECA prior to 1/15/2024) for direct-drive, 8.8 GPM @ 1750 RPM Hydra Cell Pro model D10 pump Catalog Pages (Metric version: Hydra Cell Pro model G10 pump Catalog Pages) Hydra Cell Pro model D10 pump Installation, Operation & Maintenance Manual Hydra Cell Pro model D10 pump/motor adapters
	$5274 + UPS LTL freight up to 8.8 GPM @ 1000 PSIG Belt-Driven D10XKBTHFECA pump driven by an 7-1/2 HP1800 RPM motor, mounted to an adjustable baseplate to maintain belt tension, sheaves, belts and spare belts included Baseplate Specifications Hydra-Cell-Pro-Pump-Pulley-Selection-Guide
	$3777 + UPS LTL freight up to 8.8 GPM @ 1000 PSIG Direct-Driven D10EKBTHFECA pump driven by a 7-1/2 HP1800 RPM motor, connected via shaft coupling and adapter, mounted to a baseplate Baseplate Specifications
	$3600 + UPS shipping 1 business day lead time  Up to 20 GPM @ 1,000 PSIG Model H25XKBTHFECA for belt-drive Model H25EKBTHFECA for direct-drive H25 Hydra Cell Pro pump Specifications (Metric version G25 Specifications) H25 Hydra Cell Pro pump Installation, Operation & Maintenance Manual H25 Hydra Cell Pro pump Parts Manual (Alloy Pump Heads) H25 Hydra Cell Pro pump Parts Manual (Non-Alloy Pump Heads)
	$8021 + UPS LTL freight up to 20 GPM @ 1000 PSIG Belt-Driven H25XKBTHFECA pump driven by a 15 HP 1800 RPM motor, mounted to an adjustable baseplate to maintain belt tension, sheaves, belts and spare belts included Baseplate Specifications Hydra-Cell-Pro-Pump-Pulley-Selection-Guide
	$8297 + UPS LTL freight up to 20 GPM @ 1000 PSIG Direct-Driven H25EKBTHFECA pump driven by a 15 HP 1200 RPM motor, connected via shaft coupling and adapter, mounted to a baseplate Baseplate Specifications
	$6443 + UPS + LTL Freight, 4-5 week lead time Up to 36.5 GPM @ 1,200 PSIG, includes A01-116-3400 12 oz oil reservoir Model D35XKBTHFECA for belt-drive Model D35EKBTHFECA (34 GPM) for direct-drive Model D35 Hydra Cell Pro Catalog Pages and IOM Manual Metric version: G35 Hydra-Cell Pro Pump Specifications
	$11,390 + UPS LTL freight: up to 36.5 GPM @ 733  PSIG or 23 GPM @ 1200 PSIG (20 HP motor) $11,880 + UPS LTL freight: up to 36.5 GPM @ 933  PSIG or 28 GPM @ 1200 PSIG (25 HP motor) $12,425 + UPS LTL freight: up to 36.5 GPM @ 1133 PSIG or 34 GPM @ 1200 PSIG (30 HP motor) Belt-Driven D35XKBTHFECA  pump with 1800 RPM motor, mounted to an adjustable baseplate to maintain belt tension, sheaves, belts and spare belts included Baseplate Specifications Hydra-Cell-Pro-Pump-Pulley-Selection-Guide
	$11,943 + UPS LTL freight: up to 34 GPM @ 745 PSIG (20 HP motor) Direct-Driven D35EKBTHFECA  pump with 1200 RPM motor, connected via shaft coupling and adapter, with coupling guard, mounted to a baseplate Baseplate Specifications 25 and 30 HP skids area available, call/email for pricing

The Secret to Long, Reliable Hydra-Cell Pro Pump Service

Its all in the oil.  Regular oil changes will help ensure that your pump can last over a decade of daily use.



The D10 Hydra-Cell Pro Pumps should have their 1 quart of oil in the hydraulic end changed every 3000 hrs of use, which is about once per year.  The oil in H25 (3.3 quarts) and D35 pumps (7.75 quarts) should be changed every 1500 hours of use, so about once every six months.  You can use any 10W30 synthetic oil in your Hydra-Cell Pumps.  The Hydra-Oil which is installed in new pumps has additives designed to reduce wear during the initial break-in period of Hydra-Cell Pro Pumps and it costs much less than quality synthetic motor oil such as Mobil 1; part number A01-114-3430, $16.25/quart. Refer to our article Role and importance of oil used in Wanner™ Hydra-Cell® Pro Pumps for additional information.



Fluid-End Repair Kits are the other maintenance related item required to keep Hydra-Cell Pro Pumps in service.  Specifically the check valve kit replaces the check valve discs and seats, along with the springs, retainers and all of the o-rings.  The valve discs and seats wear over time and you know they are worn out when the pump starts running rough.  The wear life expectancy is from 9,000-12,000 hours of use, which is typically 3+ years of usage before they need to be replaced; D10's: part number G10V52THFEC ($227.50),  H25's: G25V52THFEC ($357.50) and G35V52THFEC ($598.00).  While a packing/plunger kit for a General or other brand tri-plex plunger pump may cost a little less, you are going to replace them more frequently and its a more complex repair. Refer to our articles Check Valve Wear Insights,  Component Breakdown of Wanner™ Hydra-Cell^® Pro Pumps and  Wanner™ Hydra-Cell^® Pro Pumps Compared to Piston and Plunger Pumps for additional information about our pump design.



Parts and Accessories

We can provide any replaceable Hydra-Cell Pro Pump component  along with typical accessories such as pressure regulating valves.  We can repair your pumps at our shop in New Jersey, virtually assist you with repairs in real time, assist with training personnel in person or virtual and coordinate factory repairs if you have damaged the hydraulic end of your pump.  Our assistance is provided without charge but you might not even require it becuase Wanner Engineering has produced quality videos covering most questions:



• 9 part series using model H25 as an example(also applicable to D10, D12, & D40 pumps)

  • Chapter 1: Overview of Hydra-Cell pump and nomenclature (3 min)

  • Chapter 2: Fluid end service: Remove pump manifold, valve plate and check valves (9 min)

  • Chapter 3: Fluid end service: How to analyze and replace diaphragms (6 min)

  • Chapter 4: Fluid end service: Priming the hydraulic cells (5 min)

  • Chapter 5: Fluid end service: Reinstall valve plate and manifold (3 min)

  • Chapter 6: Hydraulic end service: remove camshaft assembly and inspect (7 min)

  • Chapter 7: Hydraulic end service: reassemble and install Hydra-Cell pistons (2 min)

  • Chapter 8: Hydraulic end service: reassemble cam assembly and Cylinder (9 min)

  • Chapter 9: Troubleshooting Hydra-Cell pumps (5 min)



 Call 908.362.9981 now to speak with an engineer or send us an inquiry.
