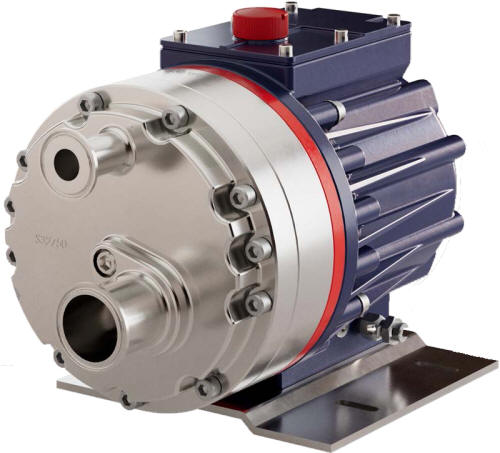

Wanner™ Hydra-Cell® Pro model PH60 Pharmaceutical Pump

Sealless pump flow rates up to 20 GPM at pressures up to 580 PSIG

Call us at 908.362.9981 to speak with a sales engineer or Send us an inquiry

Wanner™ Hydra-Cell® Pro model PH60 is a hygienic version of the H25 Hydra-Cell Pro pump.  The design of the PH70 pump head satisfies the cleanability characteristics required for high purity liquid applications within the biopharmaceutical, food/beverage, cosmetics, nutraceuticals and ultra-pure water systems in the semiconductor industries.



The three chamber design of the PH60 delivers a smooth flow rate and is compatible with most shear sensitive liquid pumping applications.  Although capable of higher pressures, the majority of our applications are related to transfer of delicate products that are challenging to pump as they are either non-lubricating, contain particulate, are viscous or at an extreme temperature - or combinations thereof!



The Hydra-Cell design does not have a dynamic seal between the process liquid and mechanical sides of the pump.  The Hydra-Cell's reliability is due in-part to its minimalist design, having few components in contact with the pumped liquid.  Elimination of a dynamic seal significantly reduces the potential for fugitive emissions and contamination of the process liquid/system.  Hydra-Cell pumps can operate dry and are undamaged by cavitation or even a fully closed inlet.  In-fact, the only way to damage a Hydra-Cell pump would be operating it beyond its design pressure and temperature range or pumping a liquid incompatible with its materials of construction (316L SS, Duplex 2507 SS, Hastelloy C, and elastomers available in PTFE/FFKM/EPDM).



Thus the PH60 can be operated dry to minimize the volume of liquid remaining within the pump head and they are typically cleaned/sterilized internally using steam or pumping a sanitizing liquid.



  • The PH60 design is USP Class VI compliant (Ensures that materials in contact with pharmaceutical products are safe, non-toxic, and do not leach harmful substances)

  • The materials in contact with the pumped liquid are are certified to be free from contamination by agents that cause TSE (Transmissible Spongiform Encephalopathies) and BSE (Bovine Spongiform Encephalopathy)

  • Full material Traceability supports GMP (Good Manufacturing Practices) and documentation for validation, audits, and inspections.

  • Wetted surfaces are polished to 0.8 Ra (surfaces have an average roughness of 0.8 micrometers) compliant with ASME BPE, 3-A as well as FDA and cGMP expectations



The relatively high flow rate and pressure capability of the PH60 Hydra-Cell Pro pump aligns with clean-in-place applications, ultra-pure water generation and spray drying applications.
