Vector Model 2004 Peristaltic Pump

Dry-Case Roller Design — up to 2.52 GPM at 45 PSI

The Vector 2004 is an industrial-grade roller-style peristaltic pump for transfer duties up to 2.52 GPM at pressures to 45 PSI. A dry case and rotating rollers pinch the hose, so the only wear part in contact with the process fluid is the hose itself. When the pump is operated at ≤80 RPM and ≤8 hours per day, typical hose life is up to 2,000 hours.

Because there are no seals, valves or packing in the fluid path, the 2004 is a practical choice for abrasive slurries, chemically aggressive fluids and shear-sensitive products. It is self-priming, can run dry without damage, and is fully reversible.

Technical Specifications

Specification	Details
Maximum Flow	2.52 GPM
Maximum Discharge Pressure	45 PSI (3 bar) with heavy-duty fiber-braided hose; lower at higher RPM
Maximum Suction Lift	14 feet (4.3 m)
Maximum Suction Pressure	18 PSI (1.2 bar)
Displacement	0.0286 gal/rev
Maximum Horsepower	⅓ HP
Hose Size	17 × 31 × 590 mm (hose is the only wearable part)
Pump Weight	20 lb (9 kg) pump only; 34 lb (15.5 kg) with drive
Design	Dry-case roller style

Fluid Handling Capability

• Viscosity up to 15,000 cps
• Liquid temperatures up to 180°F (82°C)
• Solids to 1/16″; fiber length up to 11/16″ (17.4 mm)
• Non-compressible solids: 2.55 mm at >50% solids, 4.25 mm at <10% solids
• Compressible solids up to 15.3 mm
• Sharp solids should be avoided

Hose Materials & Connections

Vector 2004 pumps are available with EPDM, Hypalon, natural rubber, oil-rated nitrile, Neoprene, silicone and Varprene hose materials. We can review chemical compatibility and provide samples for soak testing when needed.

• Extruded hoses — Neoprene, Hypalon, Varprene and silicone. Preferred for foods, pharmaceuticals and clean fluids at lower pressure. Typical life 700–1,000 hours at 30 RPM.
• Fiber-braided hoses — natural rubber, EPDM and nitrile. Preferred for abrasives, stronger vacuum and the full 45 PSI rating. Typical life 1,500–2,000 hours at 30 RPM.

Connections are typically male NPT, hose barb, ANSI flange or tri-clamp and are offered in PTFE, brass, carbon steel and 316 stainless steel.

Gear-Motor Options

Seven ⅓ HP gear-motor speeds are offered as 230/460 VAC three-phase TEFC. Single-phase motors can be supplied on request. Maximum pressure is higher with heavy-duty fiber-braided hose:

Flow (GPM)	Gear Ratio	Pump RPM	Max. PSI (std / heavy-duty hose)
0.49	100:1	17	30 / 45
0.69	70:1	24	30 / 45
0.86	60:1	30	30 / 45
1.00	46:1	38	30 / 45
1.43	35:1	50	25 / 30
1.75	28:1	61	22 / 25
2.52	20:1	88	18 / 21

Shaft-drive configuration (no motor) is also available. The 45 PSI rating applies to heavy-duty fiber-braided hose at the lower speeds.

Design Features

• Dry pump cavity — no glycerin bath
• Self-priming; runs dry without damage
• Complete isolation of the pumped fluid
• No seals, cups or packing to leak or wear
• Reversible flow
• Heavy-duty roller bearings
• Low maintenance — hose change is the primary service item

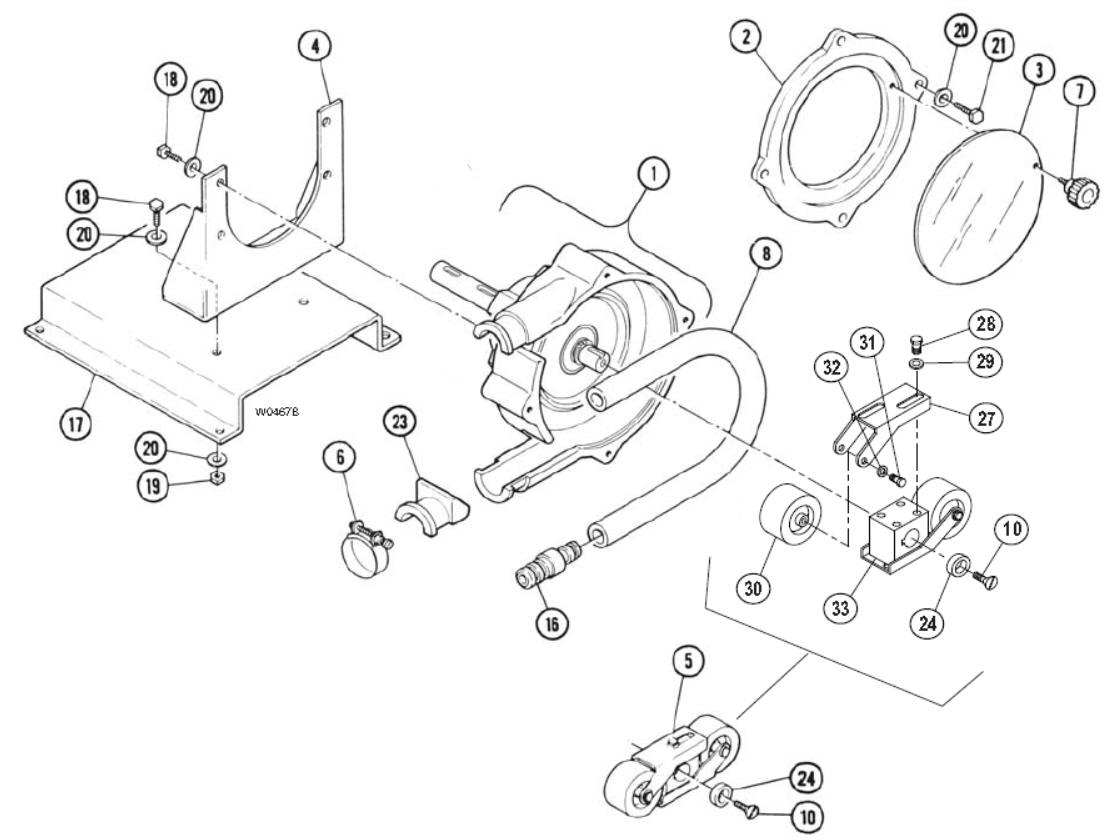

Parts List — Model 2004

Ref. No. 1 lists casing / bearing / shaft options. Ref. No. 3 lists clear and solid cover windows. Ref. No. 8 lists hose options and Ref. No. 16 lists connector options — order one hose and two connectors per pump.

Ref. No.	Part Number	Description	Quantity / Pump
1	2004-001-1001	Casing with shaft assembly	1
	2004-001-1002	Casing only	1
	2004-011-1001	Bearing	1
	2004-001-1004	Shaft only	1
2	2004-002-1001	Cover, Front	1
3	2004-003-1001	Window, Cover, clear	1
	2004-003-1002	Window, Cover, solid	1
4	2004-004-1001	Bracket	1
5	2004-005-1001	Roller Assembly	1
6	2004-006-1001	Clamp, Hose	2
7	2004-007-1001	Screw, Cover	3
8	2004-108-2312	Hose, Neoprene	1
	2004-108-2314	Hose, Varprene	1
	2004-108-2316	Hose, Hypalon	1
	2004-108-2317	Hose, Silicone	1
	2004-108-2323	Hose, EPDM	1
	2004-108-2329	Hose, Natural Rubber	1
	2004-108-2332	Hose, Nitrile	1
	2004-108-2349	Hose, Natural Rubber, HD	1
	2004-108-2332	Hose, Nitrile	1
10	G20-089-2010	Screw, Roller	1
16	2004-016-1001	Connector, PTFE, 1"	2
	2004-016-1102	Connector, 316 SST, 1"	2
	2004-016-1104	Connector, 316 SST, 3/4"	2
	2004-016-1107	Connector, Carbon Steel, 3/4"	2
	2004-016-1108	Connector, Brass, 3/4"	2
	2004-016-1109	Connector, Brass, 3/4" male	2
	2004-016-1112	Connector, 316 SST, 3/4" male	2
17	2004-017-1001	Base	1
18	2004-018-1001	Bolt, Mounting	6
19	2004-019-1001	Nut	6
20	2007-020-1001	Washer	16
21	2004-021-1001	Bolt, Cover	4
23	2004-023-1001	Support, Hose	2
24	2004-024-1001	Washer, Roller	1
27	2004-005-1004	Bracket, Roller	2
28	2005-005-1005	Screw, Bracket	2
29	2005-005-1006	Washer, Bracket	2
30	2004-005-1003	Roller, Shaft, & Bearing Assy	2
31	2004-005-1005	Screw, Roller	4
32	2004-005-1006	Washer, Roller	4
33	2004-005-1008	Rotor	1

Approximate assembled cost is $2,692 depending on hose material and connection type and includes the gear motor.
