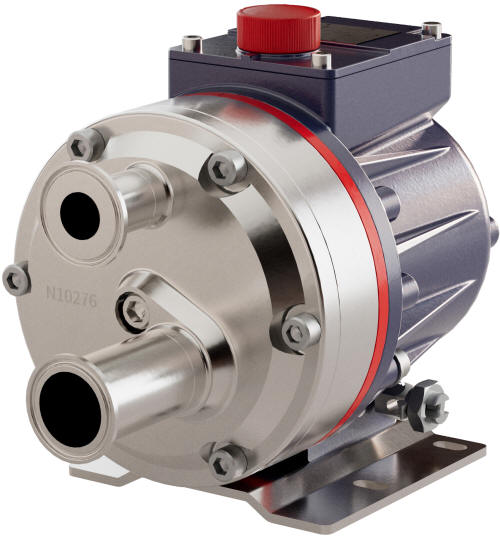

PH30 Hydra-Cell Pro Pharmaceutical Pump

Seal-Less Pump — up to 8.8 GPM at pressures to 580 PSI

The Wanner Hydra-Cell^® Pro PH30 is the pharmaceutical variation of the industrial Model D10 Hydra-Cell Pro pump. It is a seal-less positive-displacement pump that can also be used for precision metering. With no dynamic seals in contact with the process liquid, the PH30 reliably handles non-lubricating, abrasive and hazardous fluids that are problematic for pumps relying on cups, packing or mechanical seals.

Dynamic seals are expensive to maintain and are a common source of fugitive emissions. The Hydra-Cell Pro design simplifies the pumping mechanism to a pair of spring-loaded check valves and a diaphragm per chamber, delivering extreme reliability across a broad range of difficult-to-pump liquids.

Technical Specifications

Pharmaceutical Modifications

The PH series enables Hydra-Cell Pro pumps to meet the more stringent requirements of pharmaceutical and food-product manufacturing. Key differences from the industrial versions include:

• ASME BPE flanged connections
• Wetted surfaces polished to 0.8 Ra (or lower)
• Full material traceability and documentation
• TSE/BSE-free materials
• FDA-compliant elastomers

Optional features include:

• ANSI, DIN, Tri-Clamp and ASME BPE flange connections
• Gamma irradiation
• ISO Class 7 cleanroom assembly

Applications

The multi-diaphragm design produces a barely perceptible pulsation characteristic, making the PH30 well suited for shear-sensitive liquids and for use with nano-, ultra- and RO membrane filtration equipment. Hydra-Cell Pro pumps can operate dry and are used in the pharmaceutical industry for:

• Flow Chemistry & Tangential Flow Filtration
• High Performance Liquid Chromatography (HPLC)
• Low Pressure Liquid Chromatography (LPLC)
• Virus Filtration
• Buffer Formulation
• Upstream and Downstream processing
• Shear-Sensitive and Biological Material Fluid Transfer
• Blending and Injection
• Coating, Spray Drying and Clean-in-Place (CIP)

Additional Technical Resources

• PH30 Hydra-Cell Pro Specifications Sheet
