Wanner™ Hydra-Cell® Pro Model T200 Pump Parts Manual
Use the shortcut menu below to visit the applicable sectionExpert Technical Support and Fast Quotes
Whether you need a full pump system or specific replacement parts, our engineering team is here to provide the precise solution for your application.
Submit Online Inquiry Form Or Call Us Directly: 908.362.9981Factory Direct Pipeline Products, Inc. | Industrial Pump Specialists

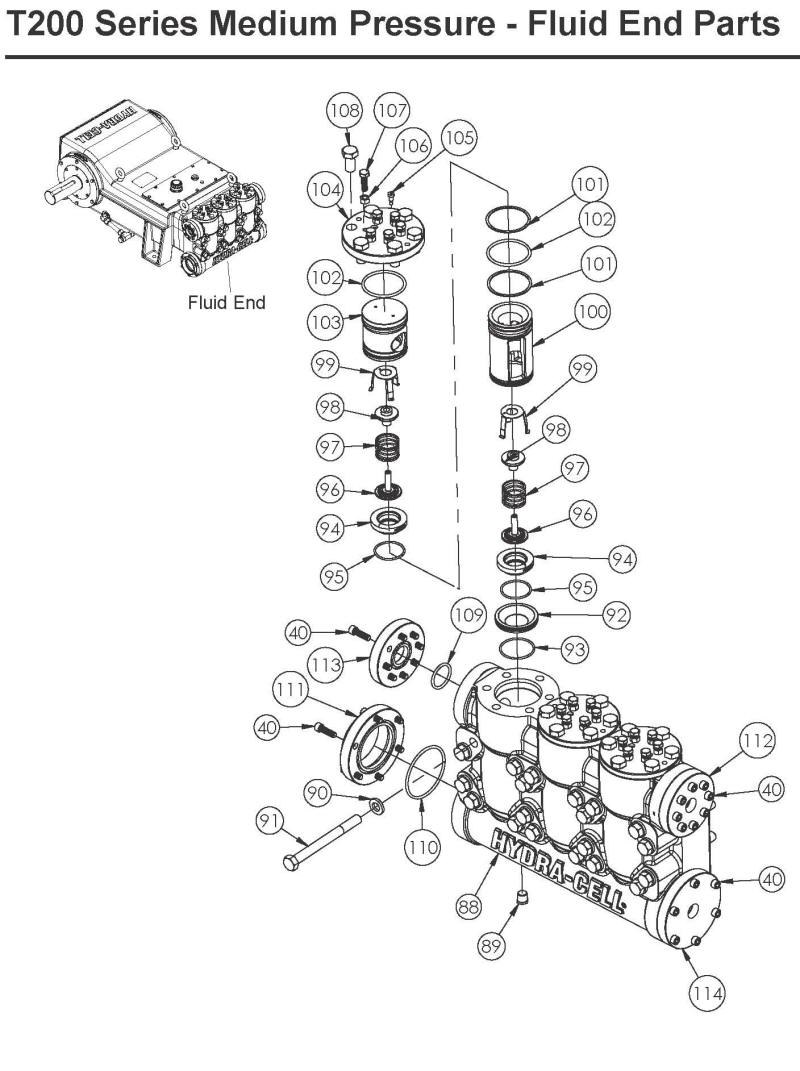

T200 Series Medium Pressure - Fluid End Parts
| Ref. No. | Part Number | Description | Qty / Pump |
|---|---|---|---|
| 40 | G35-081-2010 | Screw, M12 | 28 |
| 88 | 211-300-10 | Manifold, Medium Pressure | 1 |
| 89 | 211-070 | Plug, 1/2 NPT | 3 |
| 90 | 210-309 | Washer, 3/4" | 20 |
| 91 | 211-039 | Screw, HHCS, M20 | 20 |
| 92 | 211-340-01 | Inlet Valve Support, Austenitic SST | 3 |
| 211-340-02 | Inlet Valve Support, Hastelloy | 3 | |
| 211-340-03 | Inlet Valve Support, Duplex SST | 3 | |
| 93 | 177-382-01 | O-ring, Buna-N | 3 |
| 177-382-02 | O-ring, FKM | 3 | |
| 94 | 211-327-01 | Seat, Valve, 17-4 SST | 6 |
| 211-327-02 | Seat, Valve, Hastelloy | 6 | |
| 211-327-05 | Seat, Valve, Nitronic | 6 | |
| 95 | 211-414-01 | O-ring, Buna-N | 6 |
| 211-414-02 | O-ring, FKM | 6 | |
| 96 | 211-339-01 | Disc, Valve, Stem-guided, 17-4 SST | 6 |
| 211-339-02 | Disc, Valve, Stem-guided, Hastelloy | 6 | |
| 211-339-05 | Disc, Valve, Stem-guided, Nitronic | 6 | |
| 97 | 211-325-01 | Spring, Elgiloy | 6 |
| 211-325-02 | Spring, Hastelloy | 6 | |
| 98 | 211-338 | Bushing, Valve Stem | 6 |
| 99 | 211-333-02 | Retainer, Valve Spring, 316 SST | 6 |
| 211-333-03 | Retainer, Valve Spring, Hastelloy | 6 | |
| 100 | 211-317-01 | Inlet Valve Retainer, Austenitic SST | 3 |
| 211-317-02 | Inlet Valve Retainer, Hastelloy | 3 | |
| 211-317-03 | Inlet Valve Retainer, Duplex SST | 3 | |
| 101 | 211-334 | Backup Ring, Scarf Cut | 6 |
| 102 | 211-332-01 | O-ring, Buna-N | 6 |
| 211-332-02 | O-ring, FKM | 6 | |
| 103 | 211-323-01 | Outlet Valve Retainer, Austenitic SST | 3 |
| 211-323-02 | Outlet Valve Retainer, Hastelloy | 3 | |
| 211-323-03 | Outlet Valve Retainer, Duplex SST | 3 | |
| 104 | 211-472 | Cap, Valve Plug | 3 |
| 105 | 177-052 | Screw, SHSS, 8MM | 6 |
| 106 | G35-028-2010 | Nut, Hex, M12 | 18 |
| 107 | A04-043-2010 | Screw, M12 | 18 |
| 108 | 177-044 | Screw, HHCS, M20 | 18 |
| 109 | 209-750-01 | O-ring, Buna-N | 2 |
| 209-750-02 | O-ring, FKM | 2 | |
| 110 | 209-751-01 | O-ring, Buna-N | 2 |
| 209-751-02 | O-ring, FKM | 2 | |
| 111 | 209-726-01 | Adaptor, 4", NPT, Steel | 1 |
| 209-721-01 | Adaptor, 4", Weld Neck, Steel | 1 | |
| 209-721-02 | Adaptor, 4", Weld Neck, 316 SST | 1 | |
| 209-721-03 | Adaptor, 4", Weld Neck, Duplex SST | 1 | |
| 209-721-04 | Adaptor, 4", Weld Neck, Hastelloy | 1 | |
| 209-762-01 | Flange, 4" ANSI, Steel | 1 | |
| 209-762-02 | Flange, 4" ANSI, 316 SST | 1 | |
| 209-762-03 209-762-04 |
Flange, 4" ANSI, Duplex SST Flange, 4" ANSI, Hastelloy |
1 1 |
|
| 112 | 209-737-01 | Adaptor, Blind, 1/2" NPT, Steel | 1 |
| 209-722-01 | Adaptor, Blind, Steel | 1 | |
| 209-722-02 | Adaptor, Blind, 316 SST | 1 | |
| 209-722-03 | Adaptor, Blind, Duplex SST | 1 | |
| 209-722-04 | Adaptor, Blind, Hastelloy | 1 | |
| 113 | 209-724-01 | Adaptor, 2", NPT, Steel | 1 |
| 209-720-01 | Adaptor, 2", Weld Neck, Steel | 1 | |
| 209-720-02 | Adaptor, 2", Weld Neck, 316 SST | 1 | |
| 209-720-03 | Adaptor, 2", Weld Neck, Duplex SST | 1 | |
| 209-720-04 | Adaptor, 2", Weld Neck, Hastelloy | 1 | |
| 209-760-01 | Flange, 2" ANSI, Steel | 1 | |
| 209-760-02 | Flange, 2" ANSI, 316 SST | 1 | |
| 209-760-03 | Flange, 2" ANSI, Duplex SST | 1 | |
| 209-760-04 | Flange, 2" ANSI, Hastelloy | 1 | |
| 114 | 209-735-01 | Adaptor, Blind, 1" NPT, Steel | 1 |
| 209-723-01 | Adaptor, Blind, Steel | 1 | |
| 209-723-02 | Adaptor, Blind, 316 SST | 1 | |
| 209-723-03 | Adaptor, Blind, Duplex SST | 1 | |
| 209-723-04 | Adaptor, Blind, Hastelloy | 1 |
T200 Series Medium Pressure - Hydraulic Section Parts
| Ref. No. | Part Number | Description | Qty / Pump |
|---|---|---|---|
| 2 | 177-059 | Eyebolt, M20 | 2 |
| 36 | 211-377-02 | Diaphragm Plate, Medium Pressure | 1 |
| 37 | 211-329 | O-ring | 3 |
| 38 | 211-379-01 | Cylinder, K | 3 |
| 211-379-02 | Cylinder, M | 3 | |
| 40 | G35-081-2010 | Screw, M12 | 18 |
| 41 | D25-034-2110 | O-ring | 3 |
| 42 | 211-326-02 | Bias Tube | 3 |
| 43 | 211-370 | Plug, Bias Tube | 3 |
| 44 | 177-904 | Cartridge, Underfill valve | 3 |
| 45 | 177-905 | Cartridge, Overfill valve | 3 |
| 46 | 177-906 | Cartridge, Air Bleed valve | 3 |
| 59 | 211-067 | Nut, Flanged, M20 | 4 |
| 60 | 211-062 | Screw, SHCS, M16 | 4 |
| 66 | 211-312 | Bias Rod Assembly | 3 |
| 67 | 211-374 | Spool Stop Assembly | 3 |
| 68 | 211-313 | Spool Assembly | 3 |
| 69 | 211-335 | Spring, Bias | 3 |
| 70 | 211-369 | Nut, Slotted Hex, M6 | 3 |
| 71 | 211-311 | Pin, M2 Coiled Spring | 3 |
| 72 | 211-310 | Rod Guide | 3 |
| 73 | 211-309 | Bias Spring | 3 |
| 74 | 211-308 | Retainer Nut, Bias Spring | 3 |
| 75 | 211-306 | Clamp, Diaphragm | 3 |
| 76 | 211-375 | Retaining Ring, Valve Washer | 3 |
| 77 | 211-302-01 | Diaphragm, Medium Pressure, Buna | 3 |
| 211-302-02 | Diaphragm, Medium Pressure, FKM | 3 | |
| 78 | 211-307-01 | Follower, Medium Pressure, Austenitic SST | 3 |
| 211-307-02 | Follower, Medium Pressure, Hastelloy | 3 | |
| 211-307-03 | Follower, Medium Pressure, Duplex SST | 3 | |
| 79 | 177-176-01 | Screw, FHSS, M6, Austenitic SST | 9 |
| 177-176-02 | Screw, FHSS, M6, Hastelloy | 9 | |
| 177-176-03 | Screw, FHSS, M6, Duplex SST | 9 | |
| 80 | 100-217-01 | O-ring, Buna-N | 9 |
| 100-217-02 | O-ring, FKM | 9 | |
| 81 | 211-330 | Backup Ring, Diaphragm | 3 |

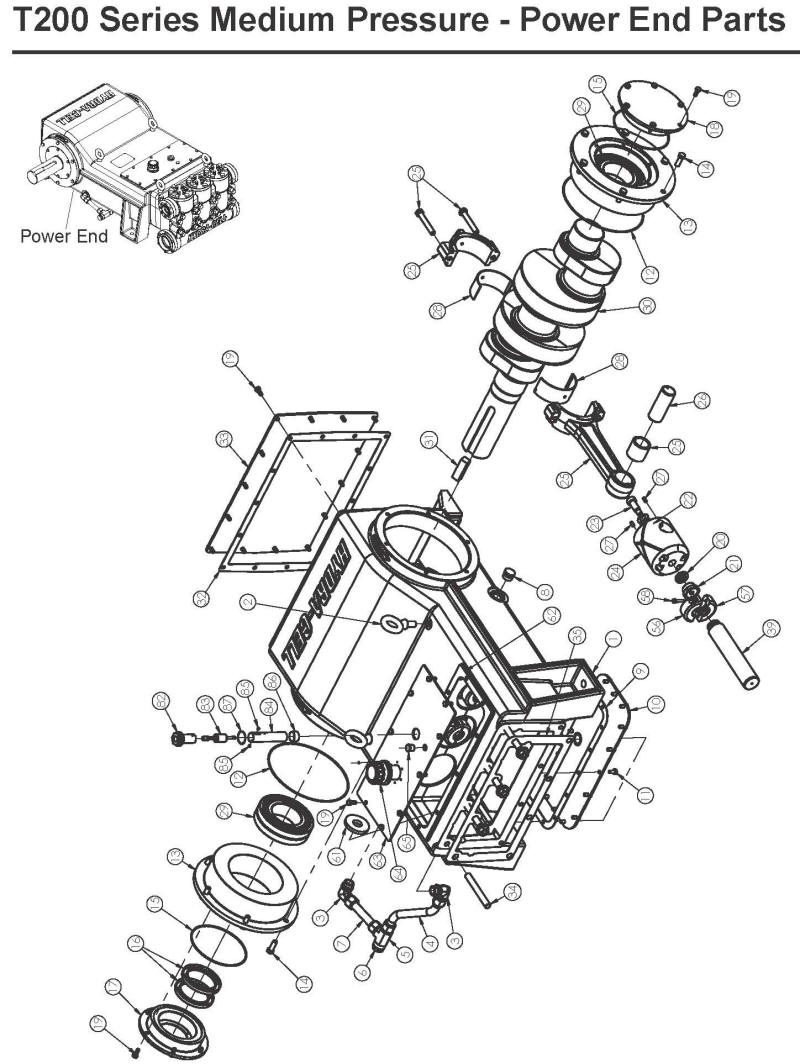

T200 Series Medium Pressure - Power End Parts
| Ref. No. | Part Number | Description | Qty / Pump |
|---|---|---|---|
| 1 | 211-001-04 | Crankcase | 1 |
| 2 | 177-059 | Eyebolt, M20 | 4 |
| 3 | 211-703 | Fitting, 90 Elbow | 2 |
| 4 | 211-706 | Tube, Radiused | 1 |
| 5 | 211-704 | Fitting, Run Tee | 1 |
| 6 | 189-312 | Plug, 1 NPT SST | 1 |
| 7 | 211-707 | Tube, Straight | 1 |
| 8 | 211-705 | Plug, Oil Drain | 1 |
| 9 | 211-054 | Gasket, Bottom Cover | 1 |
| 10 | 211-901 | Cover, Bottom, Welded Assy | 1 |
| 11 | 211-059 | Screw, HHCS, M10 | 16 |
| 12 | D40-037-2110 | O-ring | 2 |
| 13 | 211-043 | Bearing Carrier | 2 |
| 14 | 211-058 | Screw, HHCS, M14 | 12 |
| 15 | 211-051 | O-ring | 2 |
| 16 | 211-029 | Seal, Radial Shaft | 2 |
| 17 | 211-046 | Seal Carrier, Shaft End | 1 |
| 18 | 211-045 | Seal Carrier, Blind End | 1 |
| 19 | G10-029-2010 | Screw, M10 | 36 |
| 20 | 211-018 | Washer, Spherical | 3 |
| 21 | 211-019 | Adaptor, Plunger | 3 |
| 22 | 211-015 | Spring, Disc | 9 |
| 23 | 211-023 | Screw, SHSS, M16 | 3 |
| 24 | 211-005-02 | Crosshead | 3 |
| 25 | 211-003-02 | Rod, Connecting, Assembly | 3 |
| 26 | 211-008 | Wrist Pin | 3 |
| 27 | 211-014 | Screw, Set, M8 | 6 |
| 28 | 211-041 | Bearing, Split Shell (pair) | 3 |
| 29 | 211-006 | Bearing, Double Row Spherical | 2 |
| 30 | 211-002-06 | Crankshaft | 1 |
| 31 | 211-068 | Key, Shaft | 1 |
| 32 | 211-052 | Gasket, Back Cover | 1 |
| 33 | 211-007 | Cover, Back | 1 |
| 34 | 211-066 | Stud, M20 | 4 |
| 35 | 211-056 | Gasket, Crankcase Front | 1 |
| 39 | 211-304-01 | Plunger, K | 3 |
| 211-304-02 | Plunger, M | 3 | |
| 56 | 211-344 | Clamp, Plunger, CB Side | 3 |
| 57 | 211-345 | Clamp, Plunger, Threaded Side | 3 |
| 58 | 211-020 | Screw, SHCS, M8 | 6 |
| 61 | 211-055 | Magnet, Ceramic Ring | 1 |
| 62 | 211-053 | Gasket, Top Cover | 1 |
| 63 | 211-021 | Cover, Top | 1 |
| 64 | 211-037 | Cap, Oil Fill, Assembly | 1 |
| 65 | 177-459 | Plug, 1/2-14 NPT | 1 |
| 82 | 211-063 | Adaptor, Float Switch | 1 |
| 83 | 177-453-02 | Float Switch, Normally-Closed (NC) | 1 |
| 177-453-03 | Float Switch, Normally-Open (NO) | 1 | |
| 84 | 211-064 | Baffle, Float Switch | 1 |
| 85 | 211-065 | Screw, FHSS, M4 | 2 |
| 86 | 211-071 | End Cap, Baffle | 1 |
| 87 | C23-010-2110 | O-ring | 1 |
