Wanner™ Hydra-Cell® Pro Model T200 Pump Parts Manual

Use the navigation bar below to jump to the applicable parts list
Fluid End Parts Hydraulic End Parts Power End Parts

Expert Technical Support and Fast Quotes

Whether you need a full pump system or specific replacement parts, our engineering team is here to provide the precise solution for your application.

Submit Online Inquiry Form Or Call Us Directly: 908.362.9981

Factory Direct Pipeline Products, Inc. | Industrial Pump Specialists

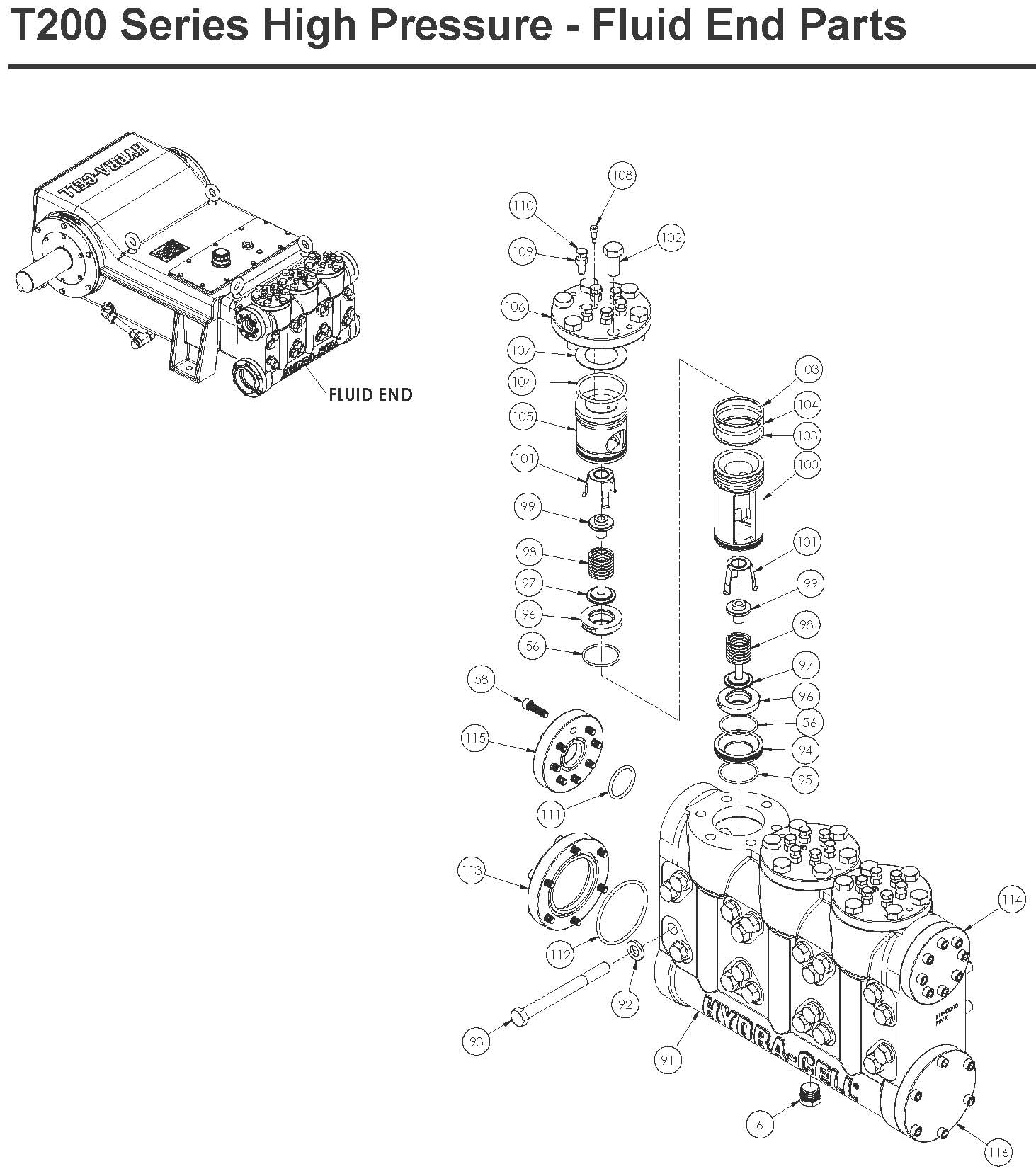

T200 Series High Pressure - Fluid End Parts

Ref. No. Part Number Description Qty / Pump
6 189-312 Plug, 1" NPT SST 3
56 211-414-01 O-ring, Buna-N 6
211-414-02 O-ring, FKM 6
58 G35-081-2010 Screw, SHCS, M12 28
91 211-400-10 Manifold, High Pressure 1
92 D66-048-2024 Washer, 3/4" 20
93 211-039 Screw, HHCS, M20 20
94 211-466-01 Inlet Valve Support, Austenitic SST 3
211-466-02 Inlet Valve Support, Hastelloy C 3
211-466-03 Inlet Valve Support, Duplex SST 3
95 211-417-01 O-ring, Buna-N 3
211-417-02 O-ring, FKM 3
96 211-464-01 Seat, Valve, High Pressure, 17-4 SST 6
211-464-02 Seat, Valve, High Pressure, Hastelloy C 6
211-464-03 Seat, Valve, High Pressure, 316 SST 6
211-464-05 Seat, Valve, High Pressure, Nitronic 6
97 211-439-01 Disc, Valve, Stem-guided, 17-4 SST 6
211-439-02 Disc, Valve, Stem-guided, Hastelloy C 6
211-439-03 Disc, Valve, Stem-guided, 316 SST 6
211-439-05 Disc, Valve, Stem-guided, Nitronic 6
98 211-421-01 Spring, Valve 6
99 211-438 Bushing, Valve Stem 6
100 211-469-01 Inlet Valve Retainer, Austenitic SST 3
211-469-02 Inlet Valve Retainer, Hastelloy C 3
211-469-03 Inlet Valve Retainer, Duplex SST 3
101 211-473-02 Retainer, Valve Spring, 316 SST 6
211-473-03 Retainer, Valve Spring, Hastelloy C 6
102 177-044 Screw, HHCS, M20 18
103 211-434 Backup Ring, Scarf Cut 6
104 211-415-01 O-ring, Buna-N 6
211-415-02 O-ring, FKM 6
105 211-471-01 Outlet Valve Retainer, Austenitic SST 3
211-471-02 Outlet Valve Retainer, Hastelloy C 3
211-471-03 Outlet Valve Retainer, Duplex SST 3
106 211-475 Cap, Valve Plug 3
107 211-474 Plate, Retainer, Outlet 3
108 211-061 Screw, SHSS, 8MM 6
109 211-074 Nut, Hex, M12, Coated 18
110 211-073 Bolt, HHCS, M12, Coated 18
111 209-750-01 O-ring, Buna-N 2
209-750-02 O-ring, FKM 2
112 209-751-01 O-ring, Buna-N 2
209-751-02 O-ring, FKM 2
113 209-721-01 Flange, 4" weld neck, 500 psi, SCH. 40, Steel 1
209-721-02 Flange, 4" weld neck, 500 psi, SCH. 40, Austenitic SST 1
209-721-03 Flange, 4" weld neck, 500 psi, SCH. 40, Duplex SST 1
209-721-04 Flange, 4" weld neck, 500 psi, SCH. 40, Hastelloy C 1
209-726-01 Flange, 4" NPT, 500 psi, Steel 1
209-762-01 4" ANSI Class 300 RF Weldment, Steel 1
209-762-02 4" ANSI Class 300 RF Weldment, Austenitic SST 1
209-762-03 4" ANSI Class 300 RF Weldment, Duplex SST 1
209-762-04 4" ANSI Class 300 RF Weldment, Hastelloy C 1
114 209-722-01 Flange, 2" blind, 4500 psi, Steel 1
209-722-02 Flange, 2" blind, 4500 psi, Austenitic SST 1
209-722-03 Flange, 2" blind, 4500 psi, Duplex SST 1
209-722-04 Flange, 2" blind, 4500 psi, Hastelloy C 1
209-737-01 Flange, 2" blind with 1" NPT, 4500 psi, Steel 1
115 209-720-01 Flange, 2" weld neck, 4500 psi, SCH. 160, Steel 1
209-720-02 Flange, 2" weld neck, 4500 psi, SCH. 160, Austenitic SST 1
209-720-03 Flange, 2" weld neck, 4500 psi, SCH. 160, Duplex SST 1
209-720-04 Flange, 2" weld neck, 4500 psi, SCH. 160, Hastelloy C 1
209-724-01 Flange, 2" NPT, 4500 psi, Steel 1
209-760-01 Flange, 2500 RTJ, 2" ANSI weldment, Steel 1
209-760-02 Flange, 2500 RTJ, 2" ANSI weldment, Austenitic SST 1
209-760-03 Flange, 2500 RTJ, 2" ANSI weldment, Duplex SST 1
209-760-04 Flange, 2500 RTJ, 2" ANSI weldment, Hastelloy C 1
116 209-723-01 Flange, 4" blind, 500 psi, Steel 1
209-723-02 Flange, 4" blind, 500 psi, Austenitic SST 1
209-723-03 Flange, 4" blind, 500 psi, Duplex SST 1
209-723-04 Flange, 4" blind, 500 psi, Hastelloy C 1
209-735-01 Flange, 4" blind, ported, 500 psi, Steel 1

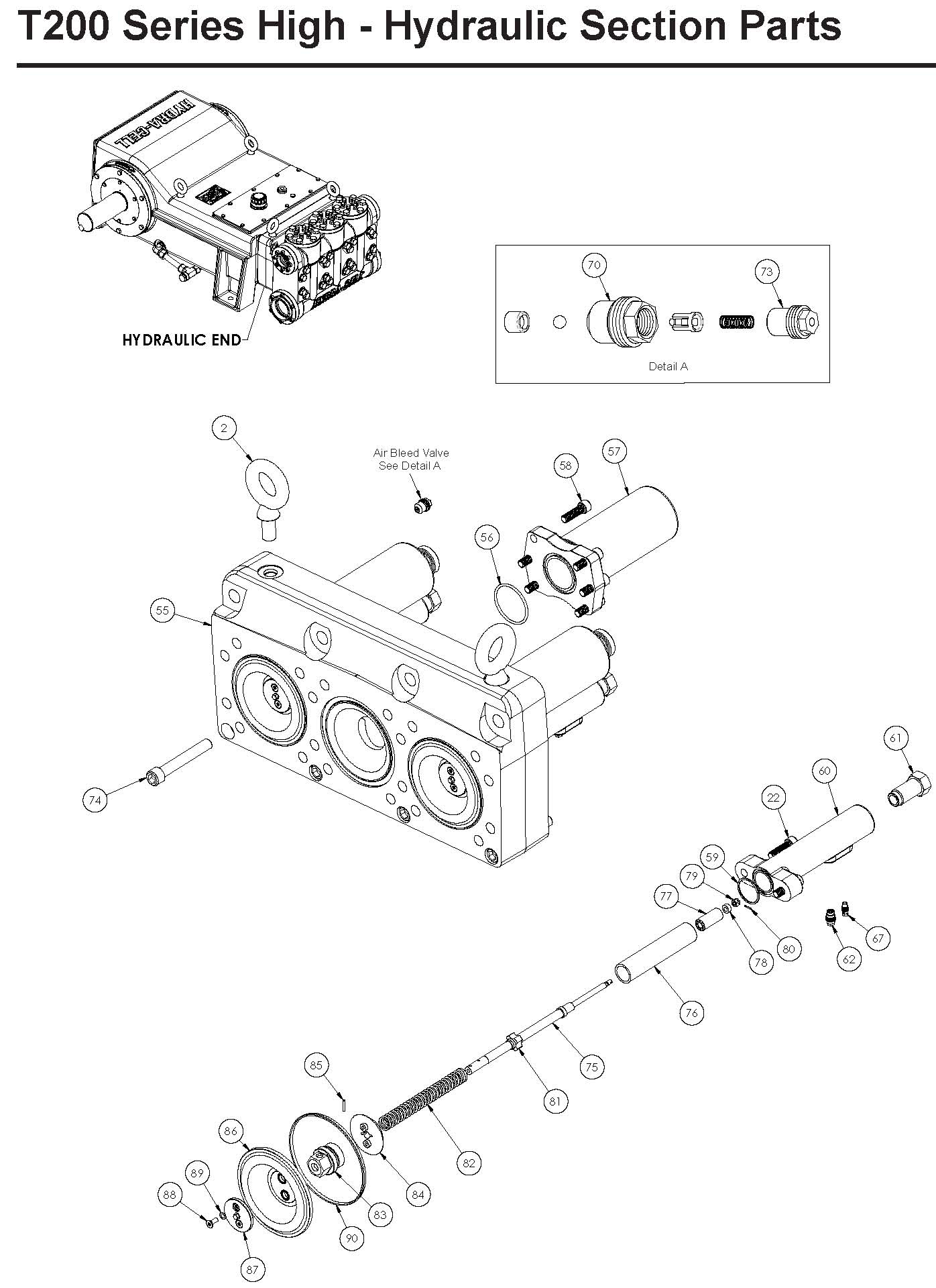

T200 Series High Pressure - Hydraulic Section Parts

Ref. No. Part Number Description Qty / Pump
2 177-059 Eyebolt, M20 2
55 211-401-02 Diaphragm Plate, High Pressure 1
56 211-414-01 O-ring, Buna-N 3
211-414-02 O-ring, FKM 3
57 211-479-01 Cylinder P, High Pressure, 2" 3
211-479-02 Cylinder Q, High Pressure, 1.875" 3
58 G35-081-2010 Screw, SHCS, M12 24
59 D25-034-2110 O-ring, Buna-N 3
D25-034-2111 O-ring, FKM 3
60 211-326-02 Bias Tube, Medium 3
61 211-370 Plug, Bias Tube 3
62 177-904 Assembly, Underfill valve 3
67 177-905 Assembly, Overfill valve 3
70 177-906 Assembly, Air Bleed valve 3
73 172-119 Retainer, Air Bleeder 3
74 211-062 Screw, SHCS, M16 4
75 211-412 Bias Rod, High Pressure 3
76 211-374 Spool Stop 3
77 211-313 Valve Spool 3
78 211-335 Washer, Bias 3
79 211-369 Nut, Slotted Hex, M6 3
80 211-311 Pin, M2 Coiled Spring 3
81 211-310 Rod Guide 3
82 211-409 Bias Spring 3
83 211-308 Retainer Nut, Bias Spring 3
84 211-406 Clamp, Diaphragm 3
85 211-419 Dowel Pin 3
86 211-403-01 Diaphragm, High Pressure, Buna-N 3
211-403-02 Diaphragm, High Pressure, FKM 3
87 211-407-01 Follower, High Pressure, Austenitic SST 3
211-407-02 Follower, High Pressure, Hastelloy C 3
211-407-03 Follower, High Pressure, Duplex SST 3
88 177-176-01 Screw, FHSS, M6, Austenitic SST 3
177-176-02 Screw, FHSS, M6, Hastelloy C 3
177-176-03 Screw, FHSS, M6 Duplex SST 3
89 100-217-01 O-ring, Buna-N 3
100-217-02 O-ring, FKM 3
90 211-467 Backup Ring, Diaphragm 3

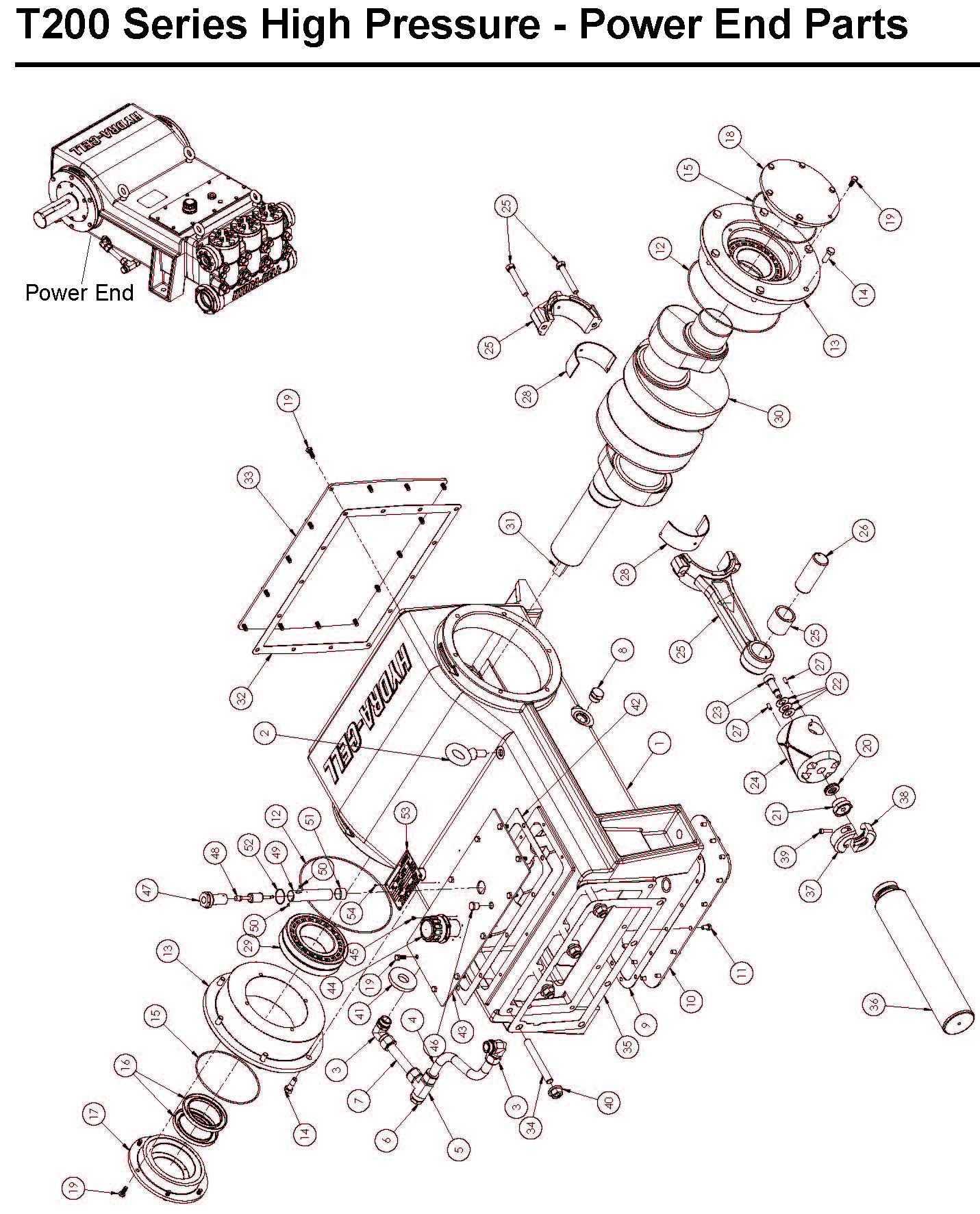

T200 Series High Pressure - Power End Parts

Ref. No. Part Number Description Qty / Pump
1 211-001-04 Crankcase 1
2 177-059 Eyebolt, M20 2
3 211-703 Fitting, 90 Elbow 2
4 211-706 Tube, Radiused 1
5 211-704 Fitting, Run Tee 1
6 189-312 Plug, 1 NPT SST 1
7 211-707 Tube, Straight 1
8 211-705 Plug, Oil Drain 1
9 211-054 Gasket, Bottom Cover 1
10 211-901 Cover, Bottom, Welded Assy 1
11 211-059 Screw, HHCS, M10 16
12 D40-037-2110 O-ring 2
13 211-043 Bearing Carrier 2
14 211-058 Screw, HHCS, M14 12
15 211-051 O-ring 2
16 211-029 Seal, Radial Shaft 2
17 211-046 Seal Carrier, Shaft End 1
18 211-045 Seal Carrier, Blind End 1
19 G10-029-2010 Screw, HHCS, M10 36
20 211-018 Washer, Spherical, Assembly 3
21 211-019 Adaptor, Plunger 3
22 211-015 Spring, Disc 9
23 211-023 Screw, SHSS, M16 3
24 211-005-02 Crosshead 3
25 211-003-02 Rod, Connecting, Assembly 3
26 211-008 Wrist Pin 3
27 211-014 Screw, Set, M8 6
28 211-041 Bearing, Split Shell (pair) 3
29 211-006 Bearing, Double Row Spherical 2
30 211-002-06 Crankshaft 1
31 211-068 Key, Shaft 1
32 211-052 Gasket, Back Cover 1
33 211-007 Cover, Back 1
34 211-066 Stud, M20 4
35 211-056 Gasket, Crankcase Front 1
36 211-404-01 Plunger P, High Pressure, 2" 3
211-404-02 Plunger Q, High Pressure, 1.875" 3
37 211-344 Clamp, Plunger, CB Side 3
38 211-345 Clamp, Plunger, Threaded Side 3
39 211-020 Screw, SHCS, M8 6
40 211-067 Nut, Flanged, M20 4
41 211-055 Magnet, Ceramic Ring 1
42 211-053 Gasket, Top Cover 1
43 211-021 Cover, Top 1
44 211-037 Cap, Oil Fill, Assembly 1
45 189-565 Screw, Pan Head 6
46 177-459 Plug, 1/2-14 NPT 1
47 211-063 Adaptor, Float Switch 1
48 177-453-02 Float Switch, Normally-Closed (NC) 1
177-453-03 Float Switch, Normally-Open (NO) 1
49 211-064 Baffle, Float Switch 1
50 211-065 Screw, FHSS, M4 2
51 211-071 End Cap, Baffle 1
52 C23-010-2110 O-ring 1
53 177-198 Nameplate 1
54 177-196 Screw Nail, Size 4 4
