Wanner™ Hydra-Cell® Pro Model T100 Pump Parts Manual
Use the navigation bar below to jump to the applicable parts list
Expert Technical Support and Fast Quotes
Whether you need a full pump system or specific replacement parts, our engineering team is here to provide the precise solution for your application.
Submit Online Inquiry Form Or Call Us Directly: 908.362.9981Factory Direct Pipeline Products, Inc. | Industrial Pump Specialists
T100 Series High Pressure - Fluid End Parts
| Ref. No. | Part Number | Description | Qty / Pump |
|---|---|---|---|
| 14 | 177-059 | Eyebolt, M20 | 2 |
| 26 | 177-152 | Nut, Hex, M27 | 8 |
| 88 | 177-210-04 | Manifold, 316L SST | 1 |
| 177-210-11 | Manifold, NAB | ||
| 89 | 177-207-01 | Plug, Inlet support, Austenitic SST | 3 |
| 90 | 177-227-01 | O-ring, Buna-N | 3 |
| 177-227-02 | O-ring, FKM | ||
| 91 | 177-121-02 | Plate, Retainer, inlet | 1 |
| 92 | 177-146-05 | Retainer, Outlet, flanged, Austenitic | 3 |
| 177-146-20 | Retainer, Outlet, 316 SST | 3 | |
| 93 | 177-148-01 | Plug, Valve Port, outlet, SST | 3 |
| 94 | 177-225-01 | Ring, Backup, Buna-N | 3 |
| 177-225-02 | Ring, Backup, FKM | 3 | |
| 95 | 177-226-01 | O-ring, Buna-N | 3 |
| 177-226-02 | O-ring, FKM | 3 | |
| 96 | 177-110 | Plate, Retainer, discharge cv | 3 |
| 97 | 177-052 | Screw, Shoulder, M8, 12 mm | 12 |
| 98 | 177-044 | Screw, Cap, hex-hd, M20, 50 mm | 10 |
| 99 | 177-014-01 | Plug, Drain, 316 SST | 3 |
| 100 | D10-047-2110 | O-ring, Buna-N | 3 |
| D10-047-2111 | O-ring, FKM | 3 | |
| 101 | 177-116 | Screw, Cap, hex-hd, M20, 250 mm | 8 |
| 102 | 177-202-01 | Valve Seat, 17-4 SST, HT | 6 |
| 177-202-02 | Valve Seat, Hastelloy C | 6 | |
| 177-202-05 | Valve Seat, Nitronic | 6 | |
| 103 | 177-254-03 | Ring, Back-up, PVDF | 6 or 12 |
| 177-254-04 | Ring, Back-up | 6 or 12 | |
| 104 | 177-253-01 | O-ring, Buna-N | 6 |
| 177-253-02 | O-ring, FKM | 6 | |
| 105 | 177-208-01 | Valve, 17-4 SST, HT | 6 |
| 177-208-02 | Valve, Hastelloy C | 6 | |
| 177-208-05 | Valve, Nitronic | 6 | |
| 106 | 177-209-01 | Spring, Elgiloy | 6 |
| 177-209-02 | Spring, Hastelloy | 6 | |
| 107 | 177-206-01 | Retainer, Valve spring, Polypropylene | 6 |
| 177-206-02 | Retainer, Valve spring, PVDF | 6 | |
| 177-206-04 | Retainer, Valve spring, 17-7 SST | 6 | |
| 177-206-05 | Retainer, Valve spring, 316 SST | 6 | |
| 177-206-06 | Retainer, Valve spring, Hastelloy C22 | 6 | |
| 108 | 177-411-01 | Ring, Lock, Austenitic SST | 6 |
| 177-411-02 | Ring, Lock, Hastelloy | 6 |

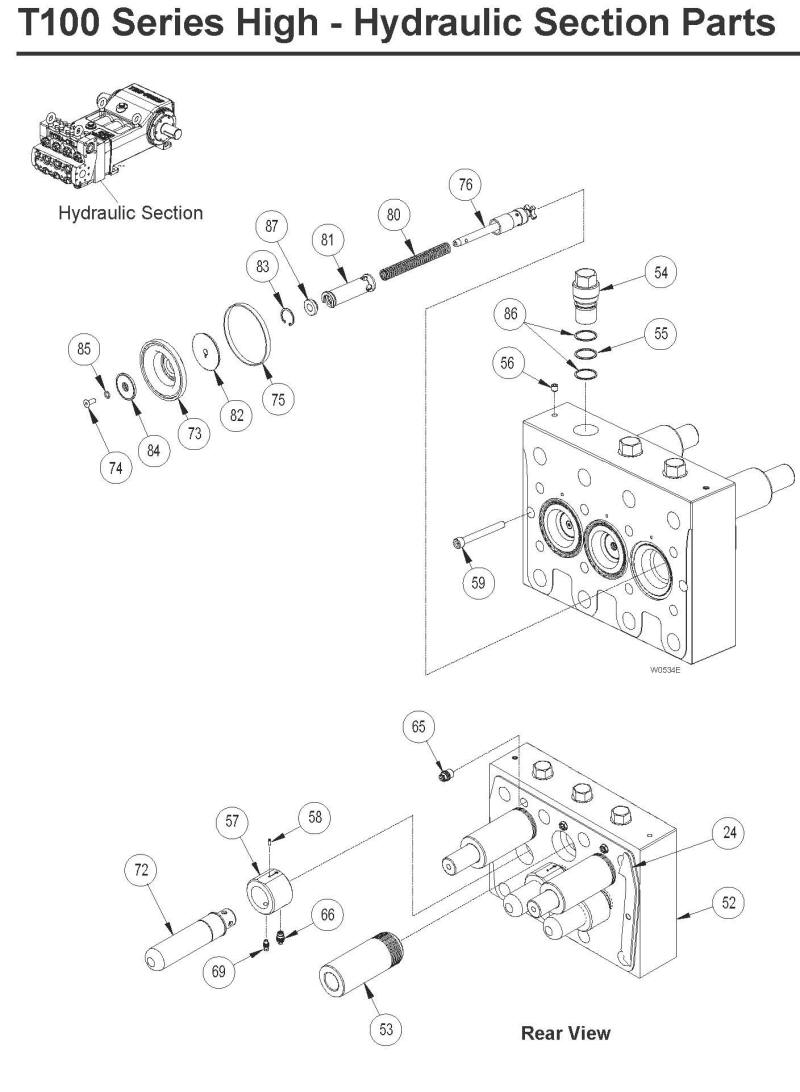

T100 Series High Pressure - Hydraulic Section Parts
| Ref. No. | Part Number | Description | Qty / Pump |
|---|---|---|---|
| 24 | 177-013 | Gasket, Diaphragm plate | 1 |
| 52 | 177-201-02 | Plate, Diaphragm, T100 High | 1 |
| 53 | 177-229 | Cylinder, S | 3 |
| 54 | 177-231 | Plug, Diaphragm plate | 3 |
| 55 | C22-016-2110 | O-ring, Buna-N | 3 |
| 56 | 177-117 | Setscrew, M10, 10 mm | 2 |
| 57 | 177-235 | Ring, Valve | 3 |
| 58 | 177-237 | Spring, Plunger | 3 |
| 59 | G10-024-2010 | Screw, Cap, soc-hd, M10, 90 mm | 2 |
| 65 | 177-906 | Cartridge, Air Bleed valve | 3 |
| 66 | 177-904 | Cartridge, Underfill valve | 3 |
| 69 | 177-905 | Cartridge, Overfill valve | 3 |
| 72 | 177-234 | Tube, Bias spring | 3 |
| 73 | 177-266-01 | Diaphragm, Buna-N | 3 |
| 177-266-02 | Diaphragm, FKM | ||
| 74 | 177-176-01 | Screw, Flat-hd, M6 x 1.0 x 16 mm, Aus | 3 |
| 75 | 177-238 | Ring, Diaphragm, back-up | 3 |
| 76 | 177-916 | Diaphragm Rod Assembly | 3 |
| 80 | 177-223 | Spring, Bias | 3 |
| 81 | 177-258 | Diaphragm Stop | 3 |
| 82 | 177-263 | Clamp, Diaphragm | 3 |
| 83 | 177-249 | Ring, Retaining, internal | 3 |
| 84 | 177-267-01 | Follower, Austenitic SST | 3 |
| 85 | 100-217-01 | O-ring, Buna-N | 3 |
| 100-217-02 | O-ring, FKM | ||
| 86 | 177-272 | Ring, Back-up, PTFE | 6 |
| 87 | 177-265 | Spacer, Bias spring | 3 |

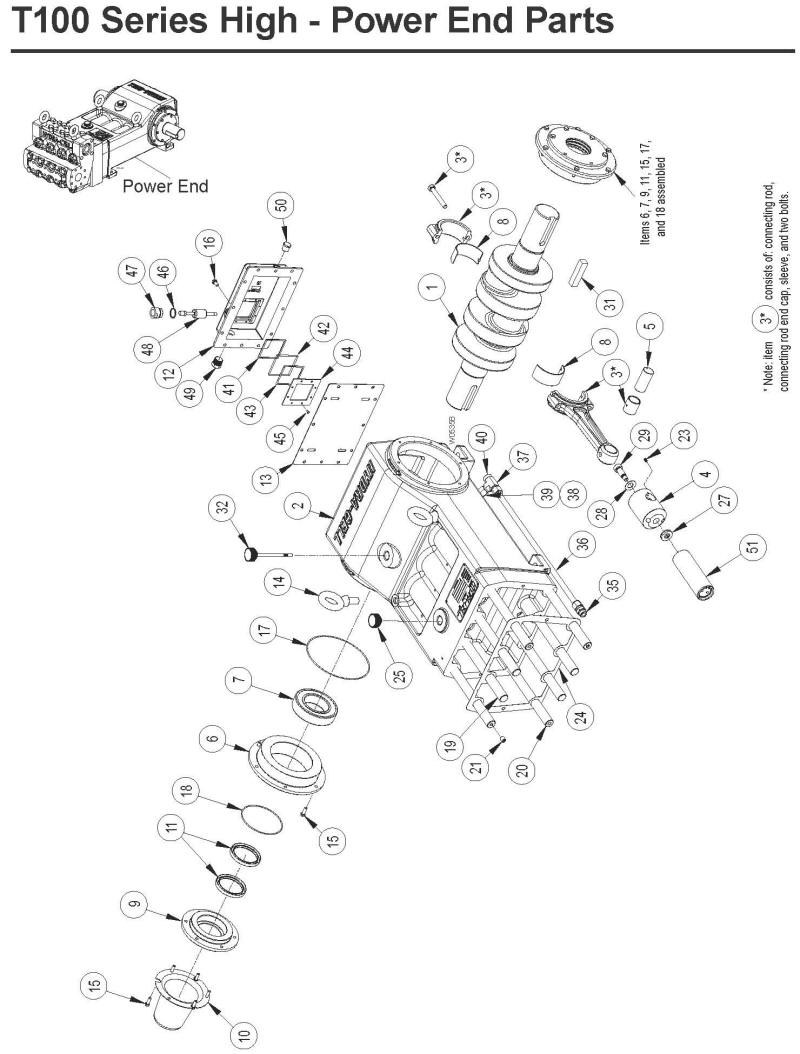

T100 Series High Pressure - Power End Parts
| Ref. No. | Part Number | Description | Qty / Pump |
|---|---|---|---|
| 1 | 177-002-06 | Crankshaft, Forged | 1 |
| 2 | 177-001-02 | Crankcase | 1 |
| 3 | 177-003-02 | Connecting Rod Assembly | 3 |
| 4 | 177-005 | Slider | 3 |
| 5 | 177-032 | Pin, Wrist | 3 |
| 6 | 177-021 | Cover, Bearing | 2 |
| 7 | 177-027 | Bearing, Roller, spherical | 2 |
| 8 | 177-041 | Bearing, Split shell (pair) | 3 |
| 9 | 177-034 | Cover, Seal | 2 |
| 10 | 177-035 | Cover, Crankshaft | 1 |
| 11 | 177-028 | Seal, Crankshaft | 4 |
| 12 | 177-022 | Cover, Back (no Oil Monitor) | 1 |
| 177-450-02 | Cover, Float switch (Oil Monitor) | 1 | |
| 13 | 177-026 | Gasket, Back cover (no Oil Monitor) | 1 |
| 177-451 | Baffle, Float switch (Oil Monitor) | 1 | |
| 14 | 177-059 | Eyebolt, M20 | 2 |
| 15 | 177-048 | Screw, Cap, hex-hd, M8, 25 mm | 24 |
| 16 | 177-043 | Screw, Cap, hex-hd, M8, 15 mm | 12 |
| 17 | H25-037-2110 | O-ring, Buna-N | 2 |
| 18 | D10-109-2110 | O-ring, Buna-N | 2 |
| 19 | 177-150 | Stud, 27 mm x 300 mm | 4 |
| 20 | 177-151 | Stud, 27 mm x 300 mm, c-bore 12 mm | 4 |
| 21 | 177-118 | Setscrew, M12, 15 mm | 4 |
| 23 | G10-082-2010 | Setscrew, M6, 10 mm | 3 |
| 24 | 177-013 | Gasket, Diaphragm plate | Ref |
| 25 | D03-039-1030 | Cap, Oil fill (with o-ring) | 1 |
| 27 | 177-031 | Washer, Spherical | 3 |
| 28 | 177-030 | Spring, Belleville | 3 |
| 29 | 177-047 | Screw, Shoulder, M16, 30 mm | 3 |
| 31 | 177-036 | Key, Crankshaft | 1 |
| 32 | 177-912 | Dipstick | 1 |
| 35 | 209-701 | Fitting, 5/8 Tube | 1 |
| 36 | 209-711 | Tube, 5/8 x 22 1/2 x .049 | 1 |
| 37 | 209-710 | Fitting, Flareless tube | 1 |
| 38 | 209-712 | Tube, 1 7/8 x .049 | 1 |
| 39 | 209-702 | Fitting, 90° Elbow | 1 |
| 40 | 189-313 | Plug, 1/2 in. NPT | 1 |
| 41 | 177-456 | Gasket, Sight glass, thick | 1 |
| 42 | 177-454 | Glass, Sight | 1 |
| 43 | 177-452 | Gasket, Sight glass | 1 |
| 44 | 177-455 | Frame, Sight glass | 1 |
| 45 | 189-565 | Screw, 10-24 pan-hd | 8 |
| 46 | D03-075-2110 | O-Ring, Buna-N | 1 |
| 47 | 177-457 | Adapter, Float switch | 1 |
| 48 | 177-453-02 | Switch, Float, normally closed | 1 |
| 177-453-03 | Switch, Float, normally open | 1 | |
| 49 | 189-311 | Plug, 3/4 NPT, SST | 1 |
| 50 | 177-459 | Plug, 1/2-14 NPT, SST | 1 |
| 51 | 177-203 | Plunger, S | 3 |
