Wanner™ Hydra-Cell® Pro Model Q330 Pumps

Use the navigation bar below to jump to the desired section
Fluid End Parts Hydraulic End Parts Power End Parts

Expert Technical Support and Fast Quotes

Whether you need a full pump system or specific replacement parts, our engineering team is here to provide the precise solution for your application.

Submit Online Inquiry Form Or Call Us Directly: 908.362.9981

Factory Direct Pipeline Products, Inc. | Industrial Pump Specialists

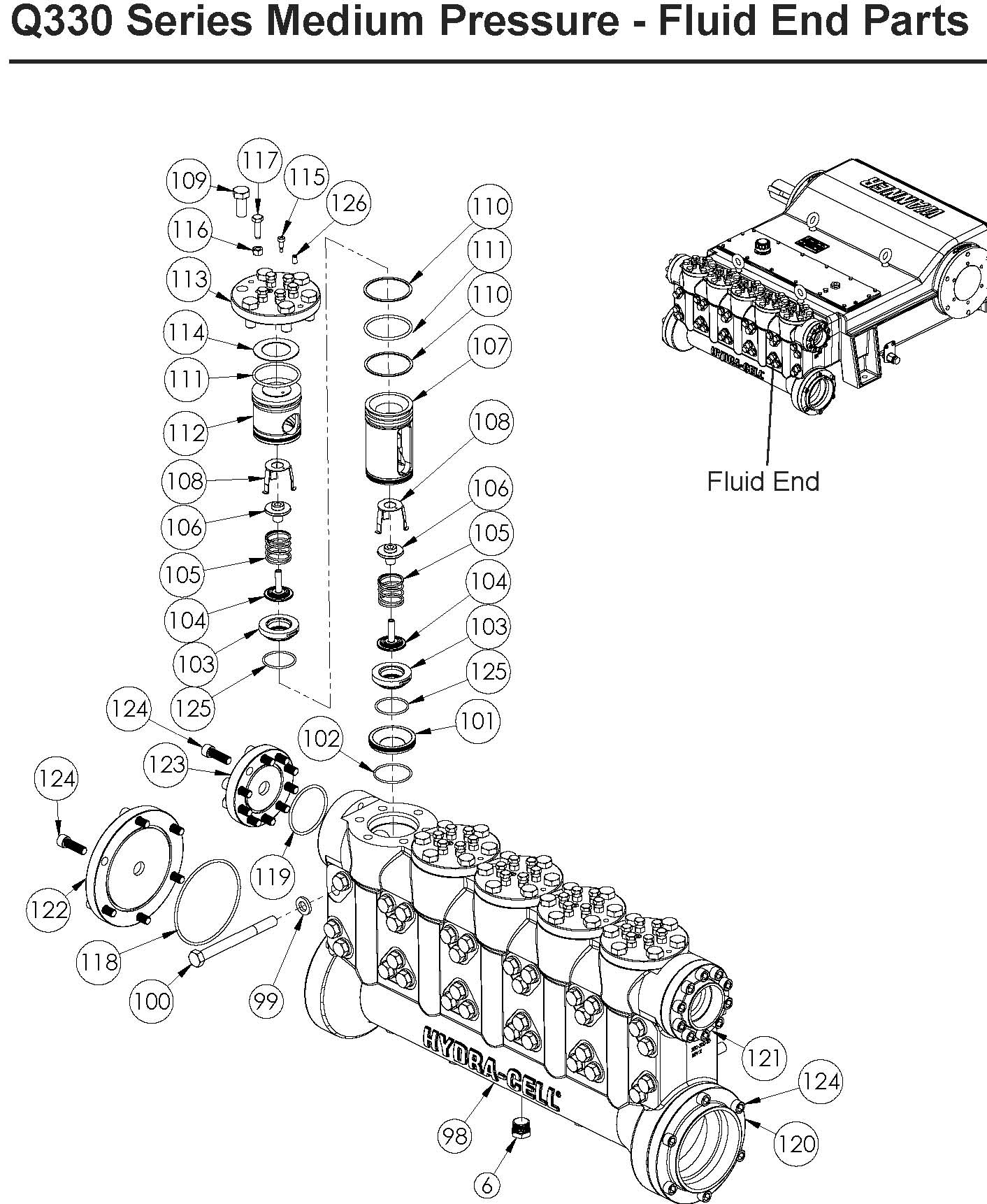

Q330 Series Medium Pressure - Fluid End Parts

Ref. No. Part Number Description Qty / Pump
6 189-312 Plug, 1" NPT SST 5
98 230-300-10 Manifold, Medium Pressure 1
99 D66-048-2024 Washer, 3/4" 32
100 211-039 Screw, HHCS, M20 32
101 211-340-01 Inlet Valve Support, Austenitic SST 5
211-340-02 Inlet Valve Support, Hastelloy C
211-340-03 Inlet Valve Support, Duplex SST
102 177-382-01 O-ring, Buna-N 5
177-382-02 O-ring, FKM
103 211-327-01 Seat, Valve, High Pressure, 17-4 SST 10
211-327-02 Seat, Valve, High Pressure, Hastelloy C
211-327-05 Seat, Valve, High Pressure, Nitronic
104 211-339-01 Disc, Valve Stem-guided, 17-4 SST 10
211-339-02 Disc, Valve Stem-guided, Hastelloy C
211-339-05 Disc, Valve Stem-guided, Nitronic
105 211-325-01 Spring, Valve, Elgiloy 10
211-325-02 Spring, Valve, Hastelloy
106 211-338 Bushing, Valve Stem 10
107 211-317-01 Inlet Valve Retainer, Austenitic SST 5
211-317-02 Inlet Valve Retainer, Hastelloy C
211-317-03 Inlet Valve Retainer, Duplex SST
108 211-333-03 Retainer, Valve Spring, Hastelloy C 5
109 177-044 Screw, HHCS, M20 30
110 211-334 Backup Ring, Scarf Cut 10
111 211-332-01 O-ring, Buna-N 10
211-332-02 O-ring, FKM
112 211-323-01 Outlet Valve Retainer, Austenitic SST 5
211-323-02 Outlet Valve Retainer, Hastelloy C
211-323-03 Outlet Valve Retainer, Duplex SST
113 211-475 Cap, Valve Plug 5
114 211-474 Plate, Retainer, Outlet 5
115 211-061 Screw, SHSS, 8MM 10
116 211-074 Nut, Hex, M12, Coated 30
117 211-073 Bolt, HHCS, M12, Coated 30
118 209-753-01 O-ring, Buna-N 2
209-753-02 O-ring, FKM
119 209-752-01 O-ring, Buna-N 2
209-752-02 O-ring, FKM
120 209-730-01 Flange, 6" weld neck, 500 psi, SCH. 40, Steel 1
209-730-02 Flange, 6" weld neck, 500 psi, SCH. 40, Austenitic SST
209-730-03 Flange, 6" weld neck, 500 psi, SCH. 40, Duplex SST
209-730-04 Flange, 6" weld neck, 500 psi, SCH. 40, Hastelloy C
209-734-01 Flange, 6" NPT, 500 psi, Steel
209-765-03 Spool, 6" ANSI Class 300 RF, Duplex SST
209-765-04 Spool, 6" ANSI Class 300 RF, Hastelloy C
121 209-741-01 Flange, 3" weld neck, 4500 psi, SCH. 160, Steel 1
209-741-02 Flange, 3" weld neck, 4500 psi, SCH. 160, Austenitic SST
209-741-03 Flange, 3" weld neck, 4500 psi, SCH. 160, Duplex SST
209-741-04 Flange, 3" weld neck, 4500 psi, SCH. 160, Hastelloy C
209-740-01 Flange, 3" NPT, 4500 psi, Steel
209-766-03 Spool, 3" ANSI Class 2500 RTJ, Duplex SST
209-766-04 Spool, 3" ANSI Class 2500 RTJ, Hastelloy C
122 209-736-01 Flange, 6" blind, 500 psi, Steel 1
209-736-02 Flange, 6" blind, 500 psi, Austenitic SST
209-736-03 Flange, 6" blind, 500 psi, Duplex SST
209-736-04 Flange, 6" blind, 500 psi, Hastelloy C
209-739-01 Flange, 6", blind x 1" NPT, 500 psi
123 209-742-01 Flange, 3" blind, 4500 psi, Steel 1
209-742-02 Flange, 3" blind, 4500 psi, Austenitic SST
209-742-03 Flange, 3" blind, 4500 psi, Duplex SST
209-742-04 Flange, 3" blind, 4500 psi, Hastelloy C
209-743-01 Flange, 3", blind x 1" NPT, 4500 psi, Steel
124 209-770 Screw, HHCS, M16 32
125 211-414-01 O-ring, Buna-N 10
211-414-02 O-ring, FKM
126 211-087 Screw, Set, M12 10

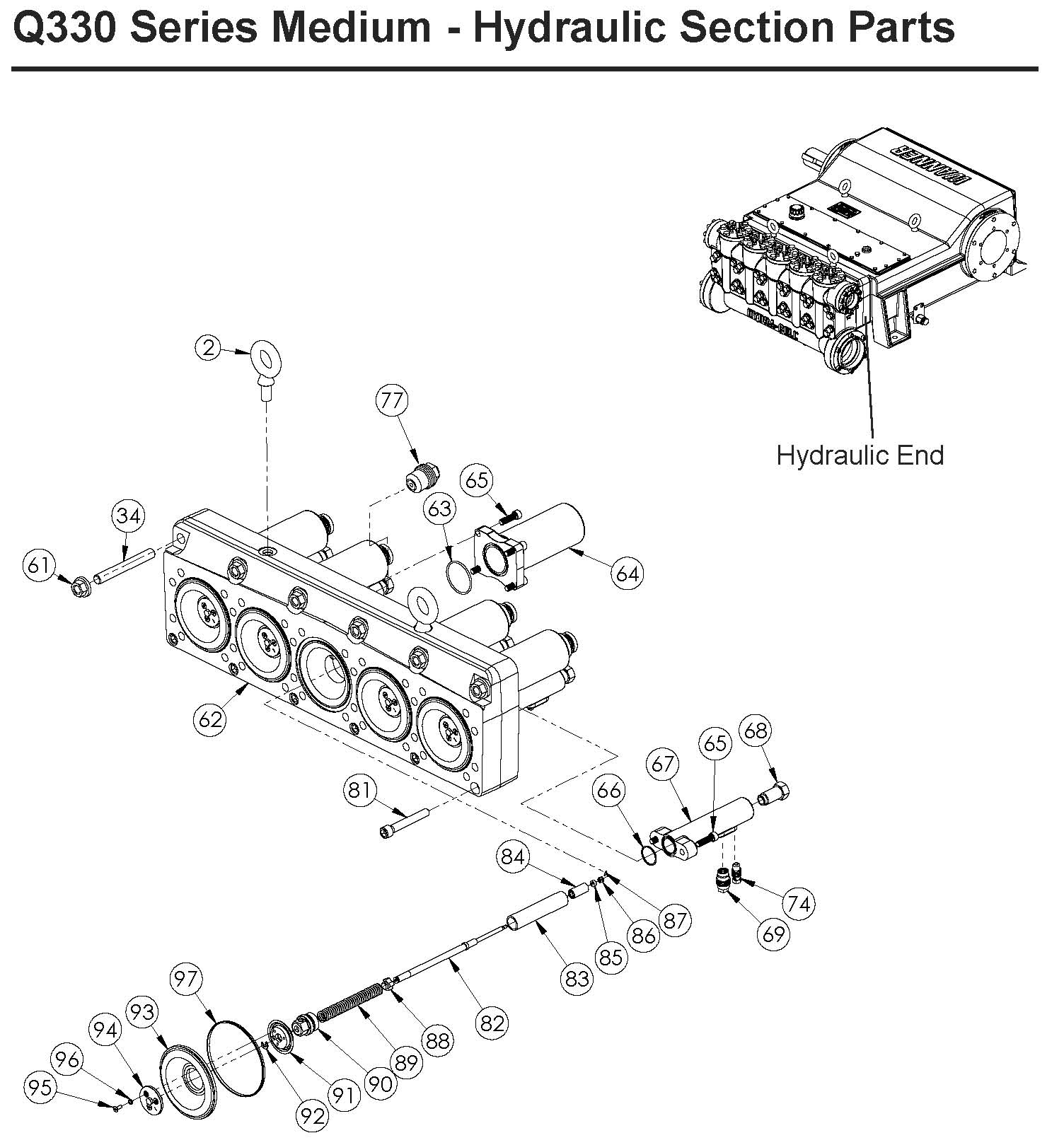

Q330 Series Medium Pressure - Hydraulic Section Parts

Ref. No. Part Number Description Qty / Pump
2 177-059 Eyebolt, M20 2
61 211-067 Nut, Flanged, M20 6
62 230-377-02 Diaphragm Plate, Medium Pressure 1
63 211-329 O-ring, Buna-N 5
64 211-379-01 Cylinder K, 2.25" 5
211-379-02 Cylinder M, 2.125"
65 G35-081-2010 Screw, M12 40
66 D25-034-2110 O-ring, Buna-N 5
67 211-326-02 Bias Tube 5
68 211-370 Plug, Bias Tube 5
69 177-904 Assembly, Underfill valve 5
74 177-905 Assembly, Overfill valve 5
77 177-906 Assembly, Air Bleed valve 5
81 211-062 Screw, SHCS, M16 6
82 211-312 Bias Rod, Medium Pressure 5
83 211-374 Spool Stop 5
84 211-313 Valve Spool 5
85 211-335 Washer, Bias 5
86 211-369 Nut, Slotted Hex, M6 5
87 211-311 Pin, M2 Coiled Spring 5
88 211-310 Rod Guide 5
89 211-309 Bias Spring 5
90 211-308 Retainer Nut, Bias Spring 5
91 211-306 Clamp, Diaphragm 5
92 211-375 Retaining Ring 5
93 211-302-01 Diaphragm, Medium Pressure, Buna-N 5
211-302-02 Diaphragm, Medium Pressure, FKM
94 211-307-01 Follower, Medium Pressure, Austenitic SST 5
211-307-02 Follower, Medium Pressure, Hastelloy C
211-307-03 Follower, Medium Pressure, Duplex SST
95 177-176-01 Screw, FHSS, M6, Austenitic SST 10
177-176-02 Screw, FHSS, M6, Hastelloy C
177-176-03 Screw, FHSS, M6, Duplex SST
96 100-217-01 O-ring, Buna-N 10
97 211-330 Backup Ring, Diaphragm 5

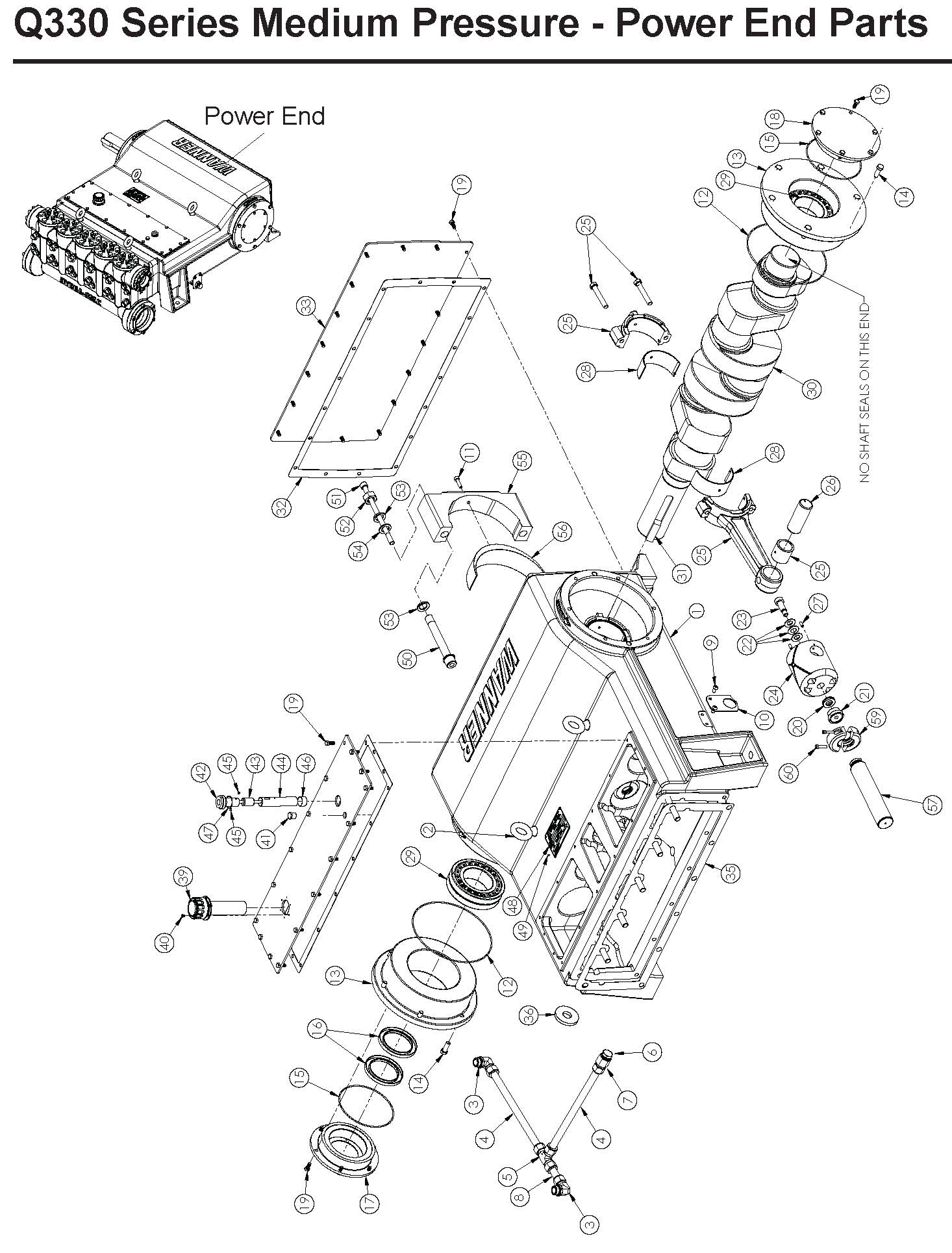

Q330 Series Medium Pressure - Power End Parts

Ref. No. Part Number Description Qty / Pump
1 230-001-02 Crankcase 1
2 177-059 Eyebolt, M20 2
3 211-703 Fitting, 90 Elbow 2
4 230-702 Tube, 1", Straight 2
5 230-700 Fitting, Run Tee 1
6 189-312 Plug, 1" NPT SST 6
7 230-701 Fitting, 1" Tube x 1" NPT 1
8 230-703 Tube, 1" Straight 1
9 177-180 Screw, BHSCS, M10 2
10 230-016 Bracket 1
11 G10-089-2011 Screw, SHCS, M10 2
12 D40-037-2110 O-ring 2
13 211-043 Bearing Carrier 2
14 211-077 Screw, HHCS, M14 12
15 211-051 O-ring 2
16 211-029 Seal, Radial Shaft 2
17 211-046 Seal Carrier, Shaft End 1
18 211-045 Seal Carrier, Blind End 1
19 G10-029-2010 Screw, HHCS, M10 46
20 211-018 Washer, Spherical, Assembly 5
21 211-019 Adaptor, Plunger 5
22 211-015 Spring, Disc 15
23 211-023 Screw, SHSS, M16 5
24 211-005-02 Crosshead 5
25 211-003-02 Rod, Connecting, Assembly 5
26 211-008 Wrist Pin 5
27 211-014 Screw, Set, M8 10
28 211-041 Bearing, Split Shell (pair) 10
29 211-006 Bearing, Double Row Spherical 2
30 230-002-02 Crankshaft 1
31 211-068 Key, Shaft 1
32 230-052 Gasket, Back Cover 1
33 230-007 Cover, Back 1
34 211-066 Stud, M20 6
35 211-056 Gasket, Crankcase Front 1
36 211-055 Magnet, Ceramic Ring 2
37 230-053 Gasket, Top Cover 1
38 230-021 Cover, Top 1
39 211-037 Cap, Oil Fill, Assembly 1
40 189-565 Screw, Pan Head 6
41 177-459 Plug, 1/2-14 NPT 1
42 211-063 Adaptor, Float Switch 1
43 177-453-02 Float Switch, Normally-Closed (NC) 1
177-453-03 Float Switch, Normally-Open (NO)
44 211-064 Baffle, Float Switch 1
45 211-065 Screw, FHSS, M4 2
46 211-071 End Cap, Baffle 1
47 C23-010-2110 O-ring 1
48 177-198 Nameplate 1
49 177-196 Screw Nail, Size 4 4
50 230-011 Bolt, Bearing Cap 4
51 230-012 Screw, SHCS, M4 4
52 230-013 Nut, Hex, M27 4
53 230-014 Washer, Spherical, Concave 8
54 230-015 Washer, Spherical, Convex 4
55 230-042-02 Cap, Main 2
56 230-041-02 Bearing, Main 2
57 211-304-01 Plunger K, 2.25" 5
211-304-02 Plunger M, 2.125"
58 211-344 Clamp, Plunger, CB Side 5
59 211-345 Clamp, Plunger, Threaded Side 5
60 211-020 Screw, SHCS, M8 10
