Wanner™ Hydra-Cell® Pro Model Q155 Pumps

Flow rates from 8 to 157 GPM at pressures up to 3500 PSI



Fluid End Parts Hydraulic End Parts Power End Parts

Expert Technical Support and Fast Quotes

Whether you need a full pump system or specific replacement parts, our engineering team is here to provide the precise solution for your application.

Submit Online Inquiry Form Or Call Us Directly: 908.362.9981

Factory Direct Pipeline Products, Inc. | Industrial Pump Specialists

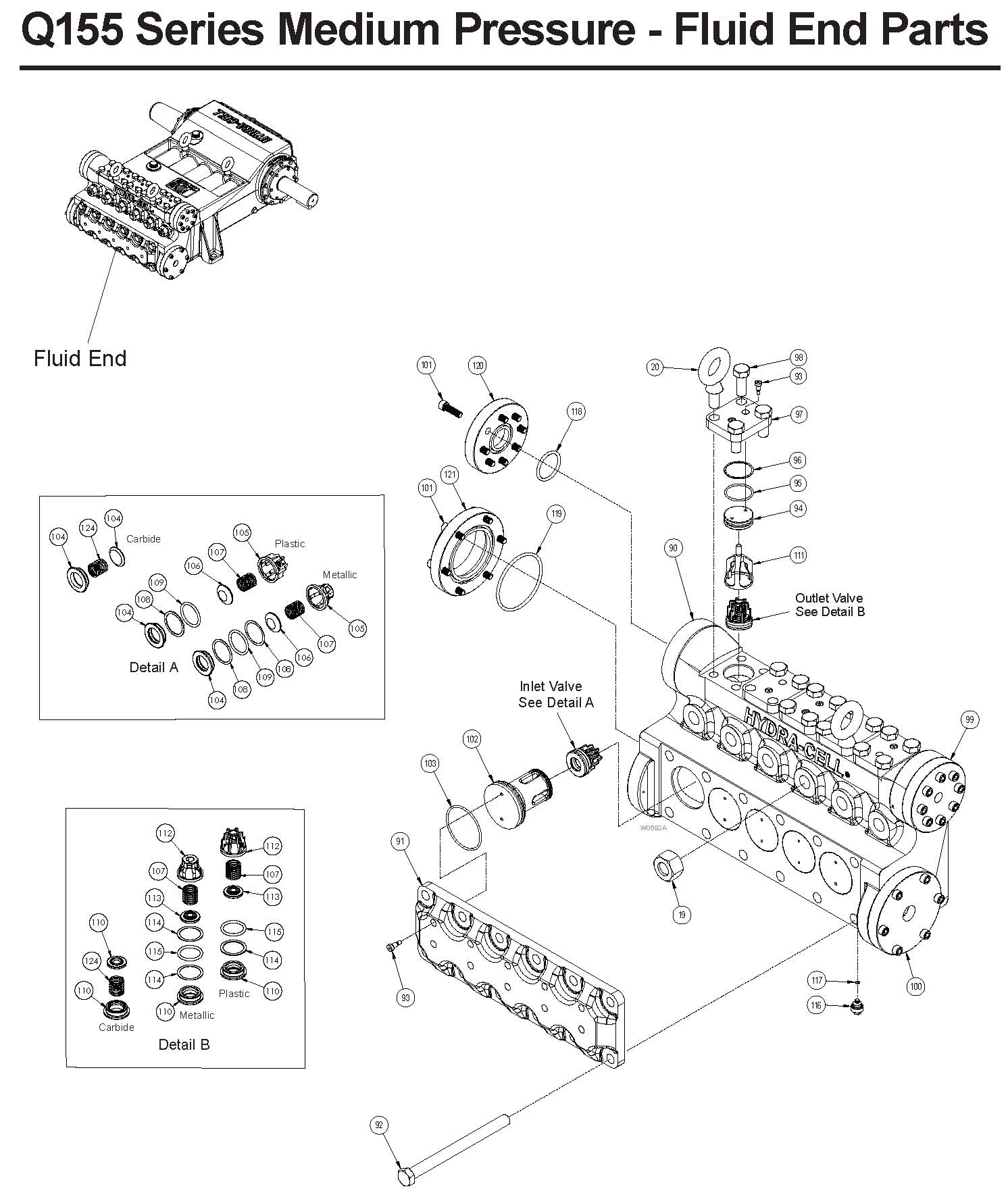

Q155 Series Medium Pressure - Fluid End Parts

Ref. No. Part Number Description Qty / Pump
19 177-152 Nut, Hex, M27 12
20 177-059 Eyebolt, M20 2
90 209-100-12 Manifold, NAB 1
209-100-13 Manifold, Duplex SST
209-100-14 Manifold, Austenitic SST
209-100-15 Manifold, Hastelloy
91 209-121-02 Plate, Retainer, inlet 1
92 177-116 Screw, Cap, hex-hd, M20, 250 mm 12
93 177-052 Screw, Shoulder, M8, 12 mm 20
94 177-148-01 Plug, Outlet, valve port, Austenitic 5
177-148-02 Plug, Outlet, valve port, Hastelloy
177-148-03 Plug, Outlet, valve port, Duplex
95 177-226-01 O-ring, Buna-N 5
177-226-02 O-ring, FKM
177-226-03 O-ring, EPDM
177-226-04 O-ring, Aflas
96 177-225-01 Ring, Backup, Buna-N 5
177-225-02 Ring, Backup, FKM
177-225-03 O-ring, EPDM
177-225-04 O-ring, Aflas
97 177-110 Plate, Retainer, discharge cv 5
98 177-044 Screw, Cap, hex-hd, M20, 50 mm 18
99 209-737-01 Adaptor, Blind, Steel, 1/2" NPT 1
209-722-01 Adaptor, Blind, Steel
209-722-02 Adaptor, Blind, 316 SST
209-722-03 Adaptor, Blind, Duplex SST
209-722-04 Adaptor, Blind, Hastelloy
100 209-735-01 Adaptor, Blind, Steel, 1 NPT 1
209-723-01 Adaptor, Blind, Steel
209-723-02 Adaptor, Blind, 316 SST
209-723-03 Adaptor, Blind, Duplex SST
209-723-04 Adaptor, Blind, Hastelloy
101 G35-081-2010 Screw, M12 X 1.75 X 40 28
102 177-107-03 Retainer, Inlet valve support, Austenitic 5
177-107-04 Retainer, Inlet valve support, Duplex SST
177-107-05 Retainer, Inlet valve support, Hastelloy
103 177-127-01 O-ring, Buna-N 5
177-127-02 O-ring, FKM
177-127-03 O-ring, EPDM
177-127-04 O-ring, Aflas
104* 177-102-01 Valve Seat, 17-4 SST 5
177-102-02 Valve Seat, Hastelloy
177-102-05 Valve Seat, Nitronic
177-111-01 Valve Assembly, Carbide [includes seat (78) and valve (80)]
105 177-106-01 Retainer, Valve spring, Polypropylene 5
177-106-02 Retainer, Valve spring, PVDF
177-422-02 Retainer Assembly, Spring, 316 SST
177-422-03 Retainer Assembly, Spring, Hastelloy
106* 177-108-01 Valve Disc, 17-4 SST 5
177-108-02 Valve, Disc, Hastelloy
177-108-05 Valve, Disc, Nitronic
177-111-01 Valve Assembly, Carbide [includes seat (78) and valve (80)]
107 177-109-01 Spring, Elgiloy 10
177-109-02 Spring, Hastelloy
108 177-054-03 Ring, Back-up, PVDF 5
177-054-04 Ring, Back-up, PVDF 10
109 177-053-01 O-ring, Buna-N 5
177-053-02 O-ring, FKM
177-053-03 O-ring, EPDM
177-053-04 O-ring, Aflas
110* 177-202-01 Valve Seat, 17-4 SST 5
177-202-02 Valve Seat, Hastelloy C
177-202-05 Valve Seat, Nitronic
177-211-01 Valve Assembly, Carbide [includes seat (84) and valve (87)]
111 177-146-03 Retainer, Outlet, Austenitic SST 5
177-146-06 Retainer, Outlet, flanged Duplex
177-146-07 Retainer, Outlet, flanged Hastelloy
112 177-206-01 Retainer, Valve spring, Polypropylene 5
177-206-02 Retainer, Valve spring, PVDF
177-423-02 Retainer Assembly, Spring, 316 SST
177-423-03 Retainer Assembly, Spring, Hastelloy
113* 177-208-01 Valve Disc, 17-4 SST 5
177-208-02 Valve Disc, Hastelloy C
177-208-05 Valve Disc, Nitronic
177-211-01 Valve Assembly, Carbide [includes seat (84) and valve (87)]
114 177-254-03 Ring, Back-up, PVDF 5
177-254-04 Ring, Back-up, PVDF 10
115 177-253-01 O-ring, Buna-N 5
177-253-02 O-ring, FKM
177-253-03 O-ring, EPDM
177-253-04 O-ring, Aflas
116 177-014-01 Plug, Drain 5
177-014-02 Plug, Drain, Hasetelloy
177-014-03 Plug, Drain, Duplex 2205
117 D10-047-2110 O-ring, Buna-N 5
D10-047-2111 O-ring, FKM
D10-047-2113 O-ring, EPDM
D10-047-2114 O-ring, Aflas
118 209-750-01 O-ring, Buna-N 2
209-750-02 O-ring, FKM
209-750-03 O-ring, EPDM
209-750-04 O-ring. Aflas
119 209-751-01 O-ring, Buna-N 2
209-751-02 O-ring, FKM
209-751-03 O-ring, EPDM
209-751-04 O-ring, Aflas
120 209-724-01 Adaptor, 2", NPT, Steel 1
209-720-01 Adaptor, 2" Weld Neck, Steel
209-720-02 Adaptor, 2", Weld Neck, 316 SST
209-720-03 Adaptor, 2", Weld Neck, Duplex SST
209-720-04 Adaptor, 2", Weld Neck, Hastelloy
209-760-03 Flange, 2", ANSI, Duplex SST
209-760-04 Flange, 2", ANSI, Hastelloy
121 209-726-01 Adaptor, 4", NPT, Steel 1
209-721-01 Adaptor, 4" Weld Neck, Steel
209-721-02 Adaptor, 4", Weld Neck, 316 SST
209-721-03 Adaptor, 4", Weld Neck, Duplex SST
209-721-04 Adaptor, 4", Weld Neck, Hastelloy
209-762-03 Flange, 4", ANSI, Duplex SST
209-762-04 Flange, 4", ANSI, Hastelloy
124 D40-022-3118 Spring, Elgiloy 10
D40-022-3119 Spring, Hastelloy

* Tungsten Carbide valve seat and disc are a matched set and must be installed together. [cite: 134] For metal retainers. [cite: 133]

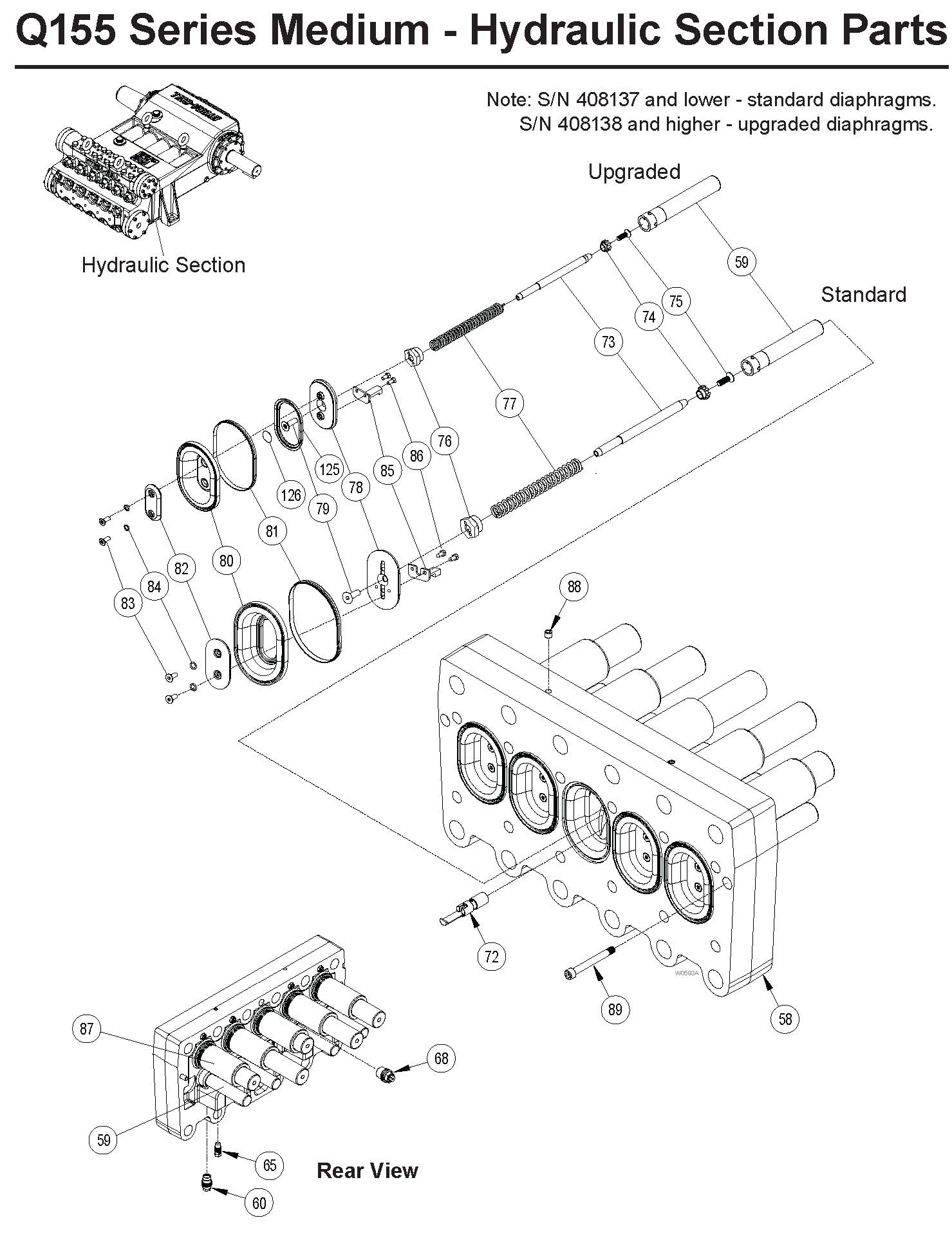

Q155 Series Medium Pressure - Hydraulic Section Parts

Ref. No. Part Number Description Qty / Pump
58 209-101-02 Diaphragm Plate 1
59 177-356 Tube, Bias spring 5
60 177-904 Cartridge, Underfill valve 5
65 177-905 Cartridge, Overfill valve 5
68 177-906 Cartridge, Air Bleed valve 5
72 177-009 Spool, Valve 5
73 177-355 Rod, Bias 5
177-194 Rod, Bias (upgraded)
74 177-312 Guide, Spring 5
75 177-149 Screw, OH 5
76 177-358 Cap, Bias tube 5
77 177-183 Spring, Bias 5
177-195 Spring, Bias (upgraded)
78 177-190 Clamp, Diaphragm 5
177-168 Clamp, Diaphragm (upgraded)
79 177-359 Screw, Flat-hd, M8, 25 mm 5
80 177-185-01 Diaphragm, Buna-N 5
177-185-02 Diaphragm, FKM
177-185-03 Diaphragm, EPDM
177-185-04 Diaphragm, Aflas
177-188-01 Diaphragm, Buna-N (upgraded)
177-188-02 Diaphragm, FKM (upgraded)
177-188-03 Diaphragm, EPDM (upgraded)
177-188-04 Diaphragm, Aflas (upgraded)
81 177-167 Ring, Diaphragm back-up, Poly 5
82 177-186-01 Follower, Austenitic 5
177-186-02 Follower, Hastelloy
177-186-03 Follower, Duplex
177-193-01 Follower, Austenitic SST (upgraded)
177-193-02 Follower, Hastelloy (upgraded)
177-193-03 Follower, Duplex SST (upgraded)
83 177-176-01 Screw, Flat-hd, Austenitic 10
177-176-02 Screw, Flat-hd, Hastelloy
177-176-03 Screw, Flat-hd, Duplex
84 100-217-01 O-ring, Buna-N 10
100-217-02 O-ring, FKM
100-217-03 O-ring, EPDM
100-217-04 O-ring, Aflas
85 177-145 Arm, Valve 5
177-192 Arm, Valve (upgraded)
86 177-050 Screw, Cap, hex-hd 10
87 177-129-01 Cylinder, K 5
177-129-02 Cylinder, M
88 177-117 Setscrew, M10, 10 mm 2
89 G10-024-2010 Screw, Cap, soc-hd, M10, 90 mm 2
125 177-169 Support, Ring (upgraded) 5
126 177-642 Plug, Screw Head (upgraded) 5

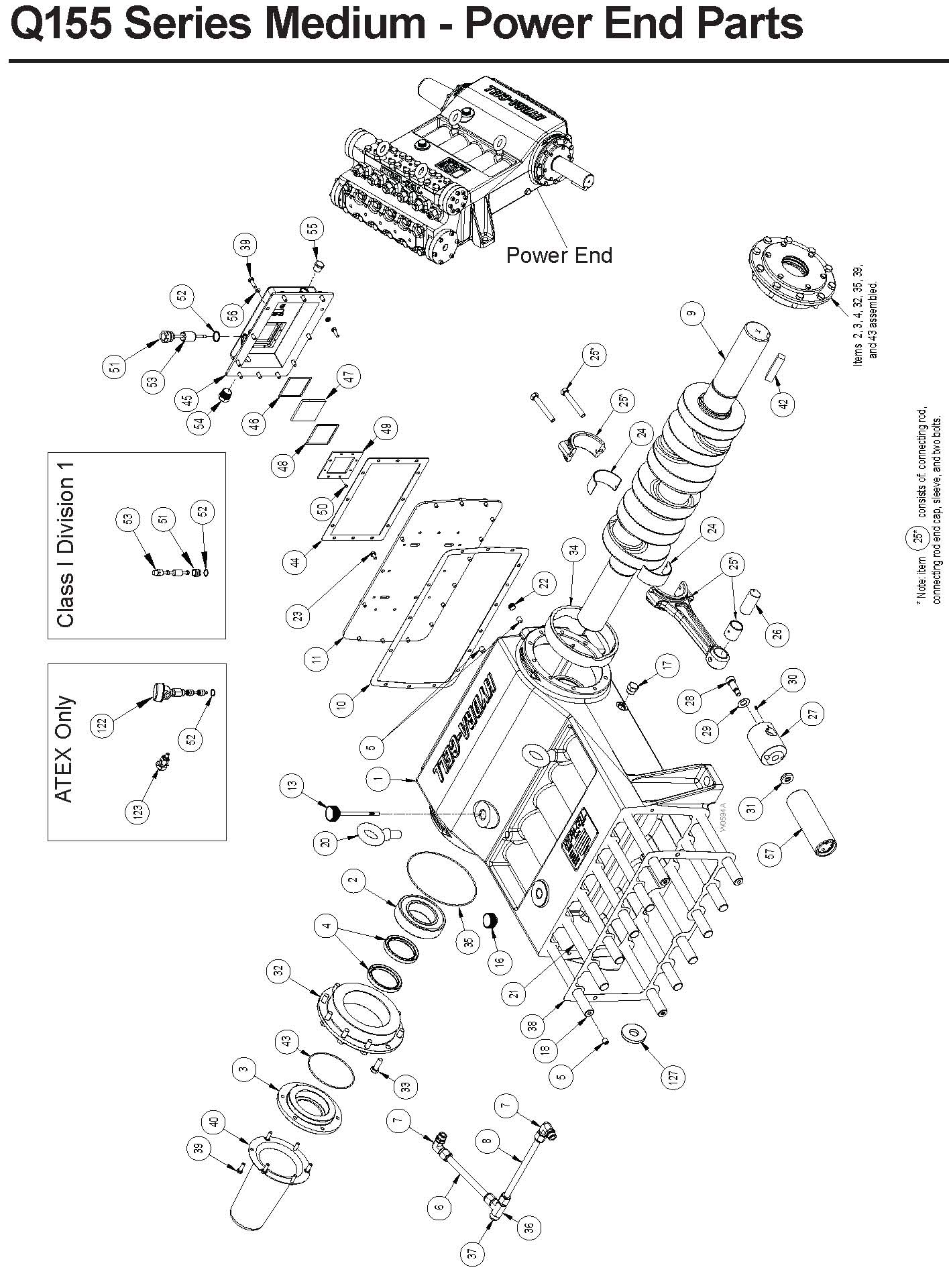

Q155 Series Medium Pressure - Power End Parts

Ref. No. Part Number Description Qty / Pump
1 209-001-02 Crankcase 1
2 177-027 Bearing, Roller, spherical 2
3 177-034 Cover, Seal 2
4 177-028 Seal, Crankshaft 4
5 177-118 Setscrew, M12, 15 mm 12
6 209-707 Tube, 5/8 x 8 x .049 1
7 209-702 Fitting, 90 Elbow 2
8 209-708 Tube, 5/8 x 10 1/4 x .049 1
9 209-002-03 Crankshaft, Forged 1
10 209-026 Gasket, Back Cover 1
209-026-01 Gasket, Back Cover, ATEX
11 209-451 Cover, Back, slotted (Oil Monitor) 1
13 177-912 Dipstick 1
16 D03-039-1030 Cap, Oil fill (with o-ring) 1
17 177-038 Plug, SAE, 7/8-14 2
18 177-151 Stud, 27 mm x 300 mm, c-bore 12 mm 4
20 177-059 Eyebolt, M20 2
21 177-150 Stud, 27 mm x 300 mm 8
22 D25-038-2211 Plug, 3/8, socket, hex 6
23 177-043 Screw, Cap, hex-hd, M8, 15 mm 15
24 177-041 Bearing, Split shell (pair) 5
25 177-003-02 Connecting Rod Assembly 5
26 177-032 Pin, Wrist 5
27 177-005 Slider 5
28 177-047 Screw, Shoulder, M16, 30 mm 5
29 177-030 Spring, Belleville 5
30 G10-082-2010 Setscrew, M6, 10 mm 5
31 177-031 Washer, Spherical 5
32 209-030-02 Bearing Carrier 2
33 G35-087-2010 Screw, M12 x 1.75, 35 mm 20
34 209-041 Bearing Shell, Main journal 2
35 H25-037-2110 O-ring, Buna-N 2
36 209-710 Tee Fitting, Flareless tube run 1
37 189-313 Plug, 1/2 Inch, NPT 1
38 209-013 Gasket, Diaphragm plate 1
39 177-048 Screw, Cap, hex-hd, M8, 25 mm 12
40 209-035 Cover, Crankshaft 1
42 177-036 Key, Crankshaft 1
43 D10-109-2110 O-ring, Buna-N 2
44 177-026 Gasket, Back cover 1
45 177-450-02 Back Cover, Oil monitor 1
46 177-456 Gasket, Sight glass, thick 1
47 177-454 Glass, Sight 1
48 177-452 Gasket, Sight glass 1
49 177-455 Frame, Sight glass 1
50 189-565 Screw, 10-24 pan-hd 8
51 177-457 Adapter, Float switch 1
52 D03-075-2110 O-Ring, Buna-N 1
53 177-453-02 Switch, Float, normally closed 1
177-453-03 Switch, Float, normally open
54 189-311 Plug, 3/4 NPT, SST 1
55 177-459 Plug, 1/2-14 NPT, SST 1
56 209-452 Washer, 8mm x 12 mm x 1 mm 12
57 177-103-01 Plunger, K 5
177-103-02 Plunger, M
127 211-055 Magnet, Ceramic Ring 2

ATEX Specific Parts

Ref. No. Part Number Description Qty / Pump
122 177-453-01 Switch, Float, ATEX, discrete 1
177-453-04 Switch, Float, ATEX, 4-20 mA
123 177-462 Stud, Earth grounding 1

Class I Div 1 Specific Parts

Ref. No. Part Number Description Qty / Pump
51 177-461 Adapter, Float switch, Class I, Div 1 1
53 177-453-05 Switch, Float, Class I Div 1, NC 1
177-453-06 Switch, Float, Class I Div 1, NO

No Oil Monitor Specific Parts

Ref. No. Part Number Description Qty / Pump
11 209-024 Cover, Back (no Oil Monitor) 1
