D/G/M 03 Hydra-Cell Pro Pump Parts Manual



Request a Quote   or Call us at 908.362.9981
 M/D03 Hydra-Cell Pro pump fluid end parts list Request a Quote   or Call us at 908.362.9981
D/G-03 Fluid End Parts
Ref. Part Number Description Qty
1
D03-024-2010 Bolt, hex-head, 3" (for metallic head) 8
D03-024-2017 Bolt, hex-head, 4" (for non-metallic head) 8
G03-024-2010 Cap Screw, socket head, M8 x 1.25 x 80 mm (metallic) 8
G03-024-2011 Cap Screw, socket head, M8 x 1.25 x 90 mm (non-metallic) 8
2
C22-014-2000 Washer, 5/16" (metallic head only) 8
3
D03-004-1010 Manifold, brass, NPT 1
D03-004-1012 Manifold, 316 SST, NPT 1
D03-004-1017 Manifold, nickel alloy, NPT (Hastelloy CW12MW) 1
D03-004-1050 Manifold, polypropylene, NPT 1
D03-004-1053 Manifold, PVDF, NPT 1
G13-004-1010 Manifold, brass, NPT 1
G13-004-1012 Manifold, 316 SST, NPT 1
G13-004-1017 Manifold, nickel alloy, NPT (Hastelloy CW12MW) 1
G13-004-1050 Manifold, polypropylene, NPT 1
G13-004-1053 Manifold, PVDF, NPT 1
4
D25-073-2110 O-ring, manifold, Buna-N 2
D25-073-2111 O-ring, manifold, FKM 2
D25-073-2112 O-ring, manifold, Neoprene 2
D25-073-2113 O-ring, manifold, EPDM 2
D25-073-2118 O-ring, manifold, PTFE 2
5
D25-046-2110 O-ring, valve seat, Buna-N 6
D25-046-2111 O-ring, valve seat, FKM 6
D03-035-2112 O-ring, valve seat, Neoprene 6
D03-035-2113 O-ring, valve seat, EPDM 6
D03-035-2118 O-ring, valve seat, PTFE 6
6
D03-020-1001 Valve Seat, 316 SST 6
D03-020-1002 Valve Seat, 17-4 SST 6
D03-020-1017 Valve Seat, Hastelloy C 6
D03-020-3300 Valve Seat, ceramic 6
D15-020-2016 Valve Seat, tungsten carbide 6
7
D03-021-1001 Valve, 316 SST, stamped 6
D03-021-1002 Valve, 17-7 SST, stamped 6
D03-021-1011 Valve, Nitronic 50 6
D03-021-1015 Valve, 17-4 SST, machined 6
D03-021-1016 Valve, tungsten carbide 6
D03-021-1017 Valve, Hastelloy C 6
D03-021-3300 Valve, ceramic 6
8
D03-022-3113 Valve Spring, Hastelloy C 6
D03-022-3114 Valve Spring, Elgiloy 6
D03-022-3118 Valve Spring, 17-7 SST 6
9
D03-092-2110 Tetra Seal, Buna-N 6
D03-092-2111 Tetra Seal, FKM 6
D03-092-2112 Tetra Seal, Neoprene 6
D03-092-2113 Tetra Seal, EPDM 6
D03-035-2119 O-ring, PTFE 6
10
D03-023-1010 Retainer, valve spring, 17-7 SST 6
D03-023-1017 Retainer, valve spring, Hastelloy C 6
D03-023-2310 Retainer, valve spring, Celcon 6
D03-023-2316 Retainer, valve spring, Nylon 6
D03-023-2317 Retainer, valve spring, polypropylene 6
D03-023-2318 Retainer, valve spring, PVDF 6
11
D03-125-1011 Washer, dampening, 316 SST 6
D03-125-2310 Washer, dampening, Celcon 6
D03-125-2316 Washer, dampening, Nylon 6
D03-125-2317 Washer, dampening, polypropylene 6
D03-125-2318 Washer, dampening, PVDF 6
12
D03-003-1010 Valve Plate, brass 1
D03-003-1012 Valve Plate, 316 SST 1
D03-003-1017 Valve Plate, nickel alloy (Hastelloy CW12MW) 1
D03-003-1050 Valve Plate, polypropylene 1
D03-003-1053 Valve Plate, PVDF 1
K03-003-1022 Valve Plate, brass, Kel-Cell 1
K03-003-1021 Valve Plate, 316 SST, Kel-Cell 1
K03-003-1023 Valve Plate, Hastelloy C, Kel-Cell 1
K03-003-1050 Valve Plate, polypropylene, Kel-Cell 1
K03-003-1053 Valve Plate, PVDF, Kel-Cell 1
14
D03-029-2010 Cap Screw, socket-head, 1" 2
G03-029-2010 Cap Screw, socket-head, M6 x 1 x 25 mm 2
16
D03-088-2010 Cap Screw, socket-head, 3/4" 2
G03-088-2010 Cap Screw, socket-head, M6 x 1 x 20 mm 2
17
D03-018-1212 Diaphragm, Neoprene 3
D03-018-1213 Diaphragm, EPDM 3
D03-018-1215 Diaphragm, FKM 3
D03-018-1220 Diaphragm, Buna-N 3
D03-018-1218 Diaphragm, PTFE 3
K03-018-1240 Diaphragm, Buna-N, Kel-Cell 3
K03-018-1242 Diaphragm, Neoprene, Kel-Cell 3
K03-018-1243 Diaphragm, EPDM, Kel-Cell 3
K03-018-1245 Diaphragm, FKM, Kel-Cell 3
K03-018-1248 Diaphragm, PTFE, Kel-Cell 3
18
D03-002-1000 Diaphragm Plate 1
K03-002-1022 Diaphragm Plate, Kel-Cell 1
19
D03-075-2110 O-ring, diaphragm plate, Buna-N 3
20
D03-014-1004 Piston 3
K03-014-1004 Piston, Kel-Cell 3
21
D10-015-3010 Ball 3
22
D03-043-1000 Valve Cylinder 3
K03-043-1010 Valve Cylinder, Kel-Cell 3
23
D03-034-2110 O-ring, valve cylinder, Buna-N 3
C23-009-2110 O-ring, valve cylinder, Buna-N, Kel-Cell 3
24
D03-044-1000 Valve Plunger 3
K03-044-1010 Valve Plunger, Kel-Cell 3
Note: * Tungsten carbide seat valve (Ref 6) does not require dampening washers.
Request a Quote   or Call us at 908.362.9981
D/G-03 Fluid End Parts (continued)
Ref. Part Number Description Qty
25
D03-045-3110 Spring, sleeve valve 3
D03-045-3111 Spring, sleeve valve for PTFE diaphragms 3
K03-045-3110 Spring, sleeve valve, Kel-Cell 3
26
D03-049-1000 Washer 3
K03-049-1000 Washer, Kel-Cell 3
27
D03-048-2210 Snap Ring 3
28
D03-014-1210 Piston Assembly 3
K03-014-1210 Piston Assembly, Kel-Cell 3
29
D03-100-1010 Manifold Support Plate 1
D03-100-1011 Manifold Support Plate, painted 1
30
102-210 O-ring, FKM (access hole) 3
31
D10-030-2010 Screw, Flat-head, SST 3
73
D03-087-2011 Cap Screw, hex-head, 5/16" 4
79
D10-040-2410 Nameplate 1
82
D10-112-2200 Rivet 4
83
D03-087-2011 Pipe plug, Hastelloy 2
D03-087-2011 Pipe plug, Solid brass 2

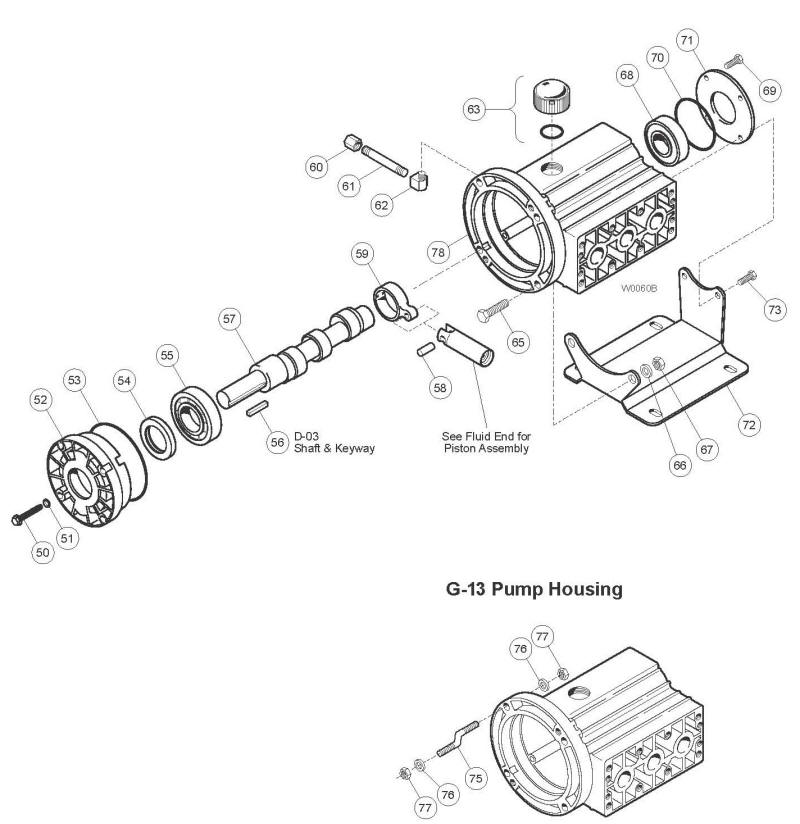

M/D03 Hydra-Cell Pro pump hydraulic end parts list





D/G-03 Hydraulic End Parts
Ref. Part Number Description Qty
50
D03-086-2010 Cap Screw, hex-head, with washer 4
G03-086-2010 Cap Screw, hex-head, with washer 4
51
D25-047-2110 O-ring, back cover screws, Buna-N 4
52
D03-131-1000 Back Cover 1
53
D03-037-2110 O-ring, back cover, Buna-N 1
54
D03-031-2110 Seal, Buna-N 1
55
D03-011-2910 Back Bearing 1
56
D10-085-2210 Key, shaft 1
57
D03-009-1002 (E) Crank Shaft, shaft-driven, 7/8" O.D., 2.2 GPM @ 1750 RPM 1
D03-009-1003 (X) Crank Shaft, shaft-driven, 7/8" O.D., 3.0 GPM @ 1750 RPM 1
D03-009-1011 (B) Crank Shaft, shaft-driven, 7/8" O.D., 1.1 GPM @ 1750 RPM 1
D03-009-1018 (S) Crank Shaft, shaft-driven, 7/8" O.D., 1.8 GPM @ 1750 RPM 1
D03-009-1067 (G) Crank Shaft, shaft-driven, 7/8" O.D., 0.5 GPM @ 1750 RPM 1
M03-009-1002 (E) Hollow Shaft, 56C direct drive, 5/8" I.D. (close-coupled), 2.2 GPM @1750 RPM 1
M03-009-1003 (X) Hollow Shaft, 56C direct drive, 5/8" I.D. (close-coupled), 3.0 GPM @1750 RPM 1
M03-009-1011 (B) Hollow Shaft, 56C direct drive, 5/8" I.D. (close-coupled), 1.1 GPM @1750 RPM 1
M03-009-1018 (S) Hollow Shaft, 56C direct drive, 5/8" I.D. (close-coupled), 1.8 GPM @1750 RPM 1
M13-009-1002 (E) Hollow Shaft, IEC 90 direct drive, 24 mm I.D. (closed-coupled), 7.1 l/min @1450 RPM 1
M13-009-1003 (X) Hollow Shaft, IEC 90 direct drive, 24 mm I.D. (closed-coupled), 9.9 l/min @1450 RPM 1
M13-009-1011 (B) Hollow Shaft, IEC 90 direct drive, 24 mm I.D. (closed-coupled), 3.5 l/min @1450 RPM 1
M13-009-1018 (S) Hollow Shaft, IEC 90 direct drive, 24 mm I.D. (closed-coupled), 5.6 l/min @1450 RPM 1
M13-009-1067 (G) Hollow Shaft, IEC 90 direct drive, 24 mm I.D. (closed-coupled), 1.6 l/min @1450 RPM 1
58
D03-133-1000 Pin 3
59
D03-132-1000 Connecting Rod 3
60
D10-078-2210 Cap, brass, 1/8" 1
61
D10-077-2210 Pipe, brass, 1/8" 1
62
D10-076-2210 Elbow, brass, 1/8" 1
63
D03-039-1030 Cap with O-ring, oil fill 1
64
D10-080-2111 O-ring, oil fill, Buna-N 1
65
D03-068-2010 Cap Screw, hex-head, 1-1/2" 2
G03-068-2010 Cap Screw, socket-head, M10 x 1.5 x 40 mm (G-03 only) 2
66
D10-048-2010 Washer, 3/8" 2
G25-048-2010 Washer, M10 (G-03 only) 2
67
D10-028-2010 Nut, hex, 3/8" (for D-03 models only) 2
G10-028-2010 Nut, hex, M10 (G-03 only) 2
68
D03-010-2910 Front Bearing 1
69*
D03-087-2010 Cap Screw, hex-head, 1/2" 4
70
D40-074-2110 O-ring, front cover, Buna-N 1
71
D03-130-1000 Front Cover 1
72
D03-025-1010 Base Plate (D-03/G-03/K-03 only) 1
73
D03-089-2010 Cap Screw, hex-head, 3/4" (D-03/K-03 models only) 2
75
M13-151-1000 Offset Bolt (G-13 only) 4
76
G25-048-2010 Washer, lock, 10 mm (G-13 only) 8
77
G10-028-2010 Nut, hex, 10 mm (G-13 only) 8
78
D03-001-1001 Pump Housing 1
G13-001-1001 Pump Housing 1

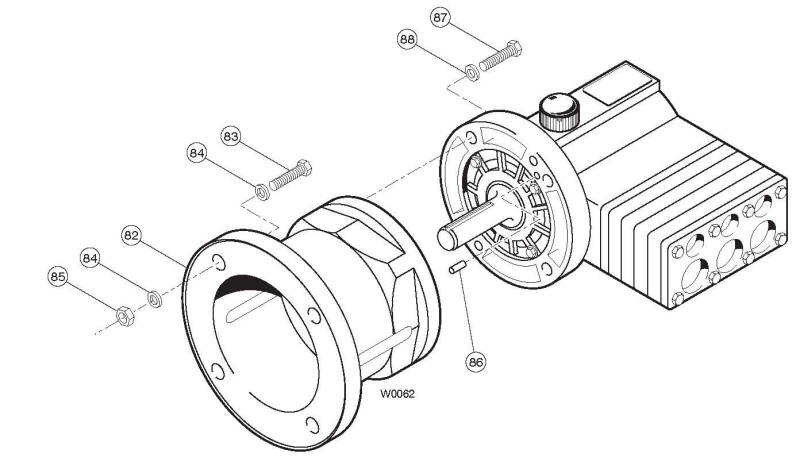

M/D03 Hydra-Cell Pro pump adapter parts list
D/G-03 Pump/Motor Adapter Kits
Ref. Part Number Description Qty
82
A04-032-1000 Pump/Motor Adapter (Kit A04-001-1202) 1
A04-033-1002 Pump/Motor Adapter (Kit A04-002-1202) 1
A04-033-1003 Pump/Motor Adapter (Kit A04-003-1202) 1
A04-032-1001 Pump/Motor Adapter (Kit A04-004-1202) 1
83
D10-087-2010 Cap Screw, socket-head (Kit A04-001-1202) 4
A04-043-2010 Cap Screw, socket-head (Kit A04-002-1202) 4
G03-068-2010 Cap Screw, socket-head (Kit A04-003-1202) 4
M10-110-2000 Cap Screw, socket-head (Kit A04-004-1202) 4
84
D10-048-2010 Lockwasher (Kit A04-001-1202) 8
M10-111-2000 Lockwasher (Kit A04-002-1202/A04-004-1202) 8
A04-044-2010 Lockwasher (Kit A04-003-1202) 8
85
A04-045-2010 Nut (Kit A04-003-1202) 4
A04-047-2010 Nut (Kit A04-004-1202) 4
86
D03-026-2211 Pin 2
87
G03-068-2010 Cap Screw, socket-head 4
88
G25-048-2010 Lockwasher 4
