H25 Hydra-Cell Pro Pump Parts List for Alloy Pump Head Versions


Request a Quote   or Call us at 908.362.9981 to speak with a sales engineer



H25 Hydra-Cell Pro Fluid End Parts



Request a Quote   or Call us at 908.362.9981 to speak with a sales engineer

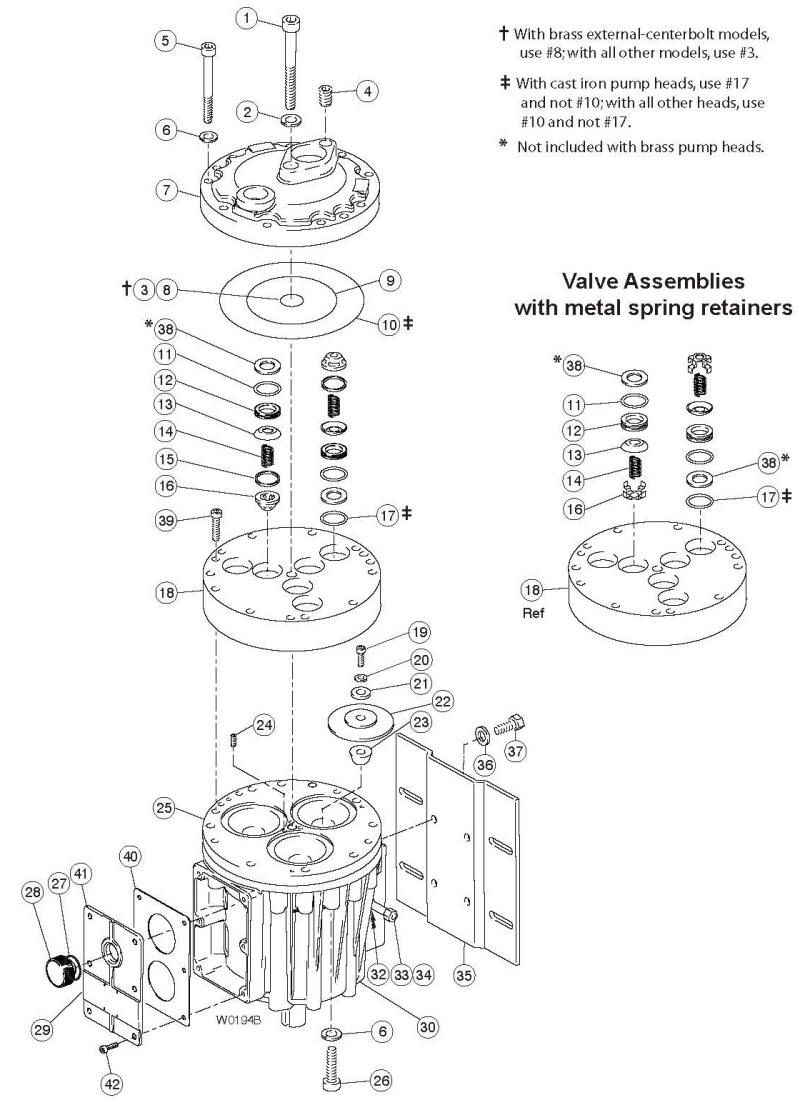

H25 Hydra-Cell Parts List - Fluid End Components

Ref Part Number Description Qty
1 G25-081-2045 Cap Screw, socket head, M12 x 1.25 x 114 mm 1
2 G10-084-1010 Washer, 13 mm, flat 1
3 D25-083-2110 O-ring, centerbolt, Buna 1
D25-083-2111 O-ring, centerbolt, Viton 1
D25-083-2112 O-ring, centerbolt, Neoprene 1
D25-083-2113 O-ring, centerbolt, EPDM 1
D25-083-2118 O-ring, centerbolt, Teflon 1
MODEL G (BSPT) PLUGS
4 G25-038-2017 Plug, Hastelloy C 1
G25-038-2211 Plug, 316 SST 1
MODEL H (NPT) PLUGS
4 D25-038-2017 Plug, Hastelloy C 1
D25-038-2210 Plug, Brass 1
D25-038-2211 Plug, 316 SST 1
5 G25-024-2010 Cap Screw, socket-head, M10 x 1.5 x 120 mm 11
6 G25-048-2010 Washer, split-lock, M10 15
MODEL G (BSPT) MANIFOLDS
7 G25-004-1010 Manifold, Brass 1
G25-004-1022 Manifold, 316 SST 1
G25-004-1026 Manifold, Cast Iron 1
G25-004-1029 Manifold, Nickel Alloy, C Series 1
G25-004-1038 Manifold, Duplex Alloy 2205 1
MODEL H (NPT) MANIFOLDS
7 D25-004-1010 Manifold, Brass 1
D25-004-1022 Manifold, 316 SST 1
D25-004-1026 Manifold, Cast Iron 1
D25-004-1029 Manifold, Nickel Alloy, C Series 1
D25-004-1036 Manifold, Duplex Alloy 2205 1
8 D10-083-2110 O-ring, center manifold, Buna 1 1
D10-083-2111 O-ring, center manifold, Viton 11
D10-083-2112 O-ring, center manifold, Neoprene 11
D10-083-2113 O-ring, center manifold, EPDM 11
D10-083-2118 O-ring, center manifold, Teflon 11
9 D25-073-2110 O-ring, inner manifold, Buna1
D25-073-2111 O-ring, inner manifold, Viton1
D25-073-2112 O-ring, inner manifold, Neoprene1
D25-073-2113 O-ring, inner manifold, EPDM1
D25-073-2118 O-ring, inner manifold, Teflon1
10 D25-097-2110 O-ring, outer manifold, Buna 21
D25-097-2111 O-ring, outer manifold, Viton 21
D25-097-2112 O-ring, outer manifold, Neoprene 21
D25-097-2113 O-ring, outer manifold, EPDM 21
D25-097-2118 O-ring, outer manifold, Teflon 21
11 D25-035-2110 O-ring, valve seat, Buna6
D25-035-2111 O-ring, valve seat, Viton6
D25-035-2112 O-ring, valve seat, Neoprene6
D25-035-2113 O-ring, valve seat, EPDM6
D25-035-2118 O-ring, valve seat, Teflon6
12 D25-020-1010 Valve Seat, 17-4 HT SST6
D25-020-1012 Valve Seat, Nitronic 506
D25-020-1016 Valve Seat, tungsten carbide6
D25-020-1017 Valve Seat, Hastelloy C6
D25-020-3300 Valve Seat, ceramic6
13 D25-021-1010 Valve, 17-7 HT SST, stamped6
D25-021-1011 Valve, Nitronic 506
D25-021-1015 Valve, 17-4 HT SST, machined6
D25-021-1016 Valve, tungsten carbide6
D25-021-1017 Valve, Hastelloy C6
D25-021-3300 Valve, ceramic6
14 D25-022-3110 Valve Spring, 17-7 HT SST6
D25-022-3114 Valve Spring, Elgiloy6
D25-022-3115 Valve Spring, Hastelloy C6
15 D25-092-2110 Tetra Seal, Buna6
D25-092-2111 Tetra Seal, Viton6
D25-092-2112 Tetra Seal, Neoprene6
D25-092-2113 Tetra Seal, EPDM6
D25-092-2118 O-ring, Teflon (not a Tetra Seal)6
16 D25-023-1010 Retainer, valve spring, 17-7 HT SST6
D25-023-1017 Retainer, valve spring, Hastelloy C6
D25-023-2310 Retainer, valve spring, Celcon6
D25-023-2316 Retainer, valve spring, Nylon6
D25-023-2317 Retainer, valve spring, polypropylene6
D25-023-2318 Retainer, valve spring, Kynar6
17 D25-074-2110 O-ring, outlet valve, Buna 23
D25-074-2111 O-ring, outlet valve, Viton 23
D25-074-2112 O-ring, outlet valve, Neoprene 23
D25-074-2113 O-ring, outlet valve, EPDM 23
D25-074-2118 O-ring, outlet valve, Teflon 23
18 D25-003-1010 Valve Plate, brass1
D25-003-1012 Valve Plate, 316 SST1
D25-003-1016 Valve Plate, cast iron1
D25-003-1029 Valve Plate, nickel alloy C series1
19 D25-030-2010 Screw, flat-head, 5/8", 316 SST3
D25-030-2011 Screw, flat-head, 5/8", Hastelloy C3
20 D25-047-2110 O-ring, follower, Buna3
D25-047-2111 O-ring, follower, Viton3
D25-047-2112 O-ring, follower, Neoprene3
D25-047-2113 O-ring, follower, EPDM3
D25-047-2118 O-ring, follower, Teflon3
21 D25-017-1010 Follower, 316 SST3
D25-017-1011 Follower, Hastelloy C3
22 D25-018-2312 Diaphragm, Neoprene3
D25-018-2313 Diaphragm, EPDM3
D25-018-2315 Diaphragm, Viton-XT3
D25-018-2318 Diaphragm, Teflon3
D25-018-2320 Diaphragm, Buna-N-XS3
D25-018-2325 Diaphragm, Aflas3
23D25-016-1010 Plunger3
24G25-082-2010 Set Screw, M6 x 1 x 16 mm3
25 K25-002-1020 Cylinder Housing, Kel-Cell1
K25-002-1210 Cylinder Housing Assembly, Kel-Cell 31
26H25-087-2010 Screw, cap, socket head4
27D10-080-2110 O-ring, oil fill, Buna1
28D03-039-1030 Cap with O-ring, oil fill1
29D10-040-2410 Name Plate1
30 H25-001-1230 Pump Housing 41
H25-001-1231 Pump Housing for C-face Adapter 41
G25-001-1218 Pump Housing Assembly 51
G25-001-1228 Pump Housing Assembly for C-face adapter 61
32D25-038-2211 Plug, socket head2
33D25-077-2210 Pipe, 3/8"1
34D25-078-2210 Cap, 3/8"1
35D25-025-1010 Base1
36G25-054-2010 Washer, shakeproof, M104
37G10-029-2010 Bolt, hex-hd4
38 D25-125-1011 Washer, dampening, 316 SST 66
D25-125-1017 Washer, dampening, Hastelloy C 66
D25-125-2310 Washer, dampening, Celcon (Delrin) 66
D25-125-2316 Washer, dampening, Nylon 66
D25-125-2317 Washer, dampening, polypropylene 66
D25-125-2318 Washer, dampening, Kynar 66
39G25-088-2010 Screw, cap, socket head3
40H25-106-2318 Gasket (Ref #40)1
41H25-105-1030 Cover, housing1
42G35-088-2010 Screw, cap, socket head 6

1 With brass external-centerbolt models, use Ref #8; with all other models, use Ref #3.
2 With cast iron pump heads, use Ref #17 and not Ref #10; with all other models, use Ref #10 and not Ref # 17.
3 Cylinder Housing Assembly includes: housing (25), bearing adjusting plate (61), O-ring (60), and screws (24).
4 Pump Housing includes: housing (30), gasket (40), cover (41), screws (42), and plugs (32).
5 Pump Housing Assembly includes: housing (30), gasket (40), cover (41), screws (42), oil drain (33, 34), plugs (32), cap screws (26), and split-lock washers (6).
6 Not required on all pumps.

Request a Quote   or Call us at 908.362.9981 to speak with a sales engineer



H25 Hydra-Cell Pro Hydraulic End Parts



Ref. No. Part Number Description Qty/Pump
50 D25-019-3111 Spring, piston return 3
51 D25-042-1010 Retainer, piston return spring 3
52 D25-046-2110 O-ring, valve cylinder, Buna 9
53 D25-045-3110 Spring, sleeve valve 3
K25-045-3110 Spring, sleeve valve, Kel-Cell 3
54 D25-044-1010 Valve Plunger 3
K25-044-1010 Valve Plunger, Kel-Cell 3
55 D25-043-1010 Cylinder, valve 3
K25-043-1010 Cylinder, valve, Kel-Cell 3
56 D25-034-2110 O-ring, Buna 6
57 D25-041-1010 Washer, ball retainer 3
58 D25-015-3010 Ball, 1/4" 12
59 D25-014-1209 Piston, with foot and retainer 3
60 D25-075-2110 O-ring, bearing adjusting plate, Buna 1
61 D25-012-1010 Bearing Adjusting Plate 1
62 H25-007-1210 (X) Cam Assembly, 20 gpm, 76 lpm @ 1050 rpm 1
H25-007-1212 (I) Cam Assembly, 12 gpm, 44 lpm @ 1150 rpm 1
H25-007-1213 (S) Cam Assembly, 16 gpm, 59 lpm @ 1150 rpm 1
H25-007-1214 (E) Cam Assembly, 20 gpm, 76 lpm @ 1150 rpm 1
63 D25-085-2210 Key, shaft 1
64 H25-031-2112 Seal, Buna, 1-1/8" 2
65 H25-037-2110 O-ring, pump housing, Buna, Ser. No. 100403 & above 1
66 D25-014-1210 Piston Assembly2 3
K25-014-1210 Piston Assembly, Kel-Cell2 3
— D25-111-2400 Label, caution 1

1 Cam Assembly includes cam, shaft, wobble plate, bearings, and cups. It is only available as an assembly.

2 Piston Assembly includes piston, valve cylinder, foot, valve plunger, O-rings, spring retainer, and springs (50-59).
