Wanner™ Hydra-Cell® Pro F20 Parts Manual

Name: Hydra-Cell F20 High-Pressure Pump
Brand: Hydra-Cell
SKU: Hydra-Cell-F20
Availability: InStock

Complete parts lists for F-20, F-21, and F-22 Fluid Ends, Hydraulic Ends, and Pump/Motor Adapter Kits.

F-20 / F-21 / F-22 Fluid End Parts

F20 Hydra-Cell Pro Pump Fluid End Diagram

Ref. No. Part Number Description Qty/Pump

G20-024-2010 Bolt, hex-head 8

F20-100-1010	Plate, manifold support (nonmetallic heads)	1
F20-100-1011	Plate, manifold support, painted (nonmetallic heads)	1

F20-004-1010	Manifold, brass, NPT	1
F20-004-1012	Manifold, 316 SST, NPT	1
F20-004-1017	Manifold, Hastelloy C, NPT	1
F20-004-1050	Manifold, polypropylene, NPT	1
F20-004-1053	Manifold, Kynar, NPT	1
G20-004-1010	Manifold, brass, BSPT	1
G20-004-1012	Manifold, 316 SST, BSPT	1
G20-004-1017	Manifold, Hastelloy C, BSPT	1
G20-004-1050	Manifold, polypropylene, BSPT	1
G20-004-1053	Manifold, Kynar, BSPT	1

D03-023-1010	Retainer, outlet valve spring, 17-7 SST	1
D03-023-1017	Retainer, outlet valve spring, Hastelloy C	1
D03-023-2310	Retainer, outlet valve spring, Celcon	1
D03-023-2316	Retainer, outlet valve spring, Nylon	1
D03-023-2317	Retainer, outlet valve spring, polypropylene	1
D03-023-2318	Retainer, outlet valve spring, Kynar	1

D03-022-3113	Valve Spring, outlet, Hastelloy C	1
D03-022-3114	Valve Spring, outlet, Elgiloy	1

D03-021-1002	Outlet Valve, 17-7 SST	1
D03-021-1011	Outlet Valve, Nitronic	1
D03-021-1016	Outlet Valve, Tungsten Carbide	1
D03-021-1017	Outlet Valve, Hastelloy C	1
D03-021-3300	Outlet Valve, ceramic	1

D03-092-2110	Tetra Seal, outlet, Buna	1
D03-092-2111	Tetra Seal, outlet, Viton	1
D03-092-2112	Tetra Seal, outlet, Neoprene	1
D03-092-2113	Tetra Seal, outlet, EPDM	1
D03-035-2118	Tetra Seal, outlet, PTFE	1

D03-035-2112	O-ring, outlet valve seat, Neoprene	1
D03-035-2113	O-ring, outlet valve seat, EPDM	1
D03-035-2118	O-ring, outlet valve seat, PTFE	1
D25-046-2110	O-ring, outlet valve seat, Buna	1
D25-046-2111	O-ring, outlet valve seat, Viton	1

D03-020-1001	Valve Seat, outlet, 316 SST	1
D03-020-1002	Valve Seat, outlet, 17-4 SST	1
D15-020-1016	Valve Seat, outlet, Tungsten Carbide	1
D03-020-1017	Valve Seat, outlet, Hastelloy C	1
D03-020-3300	Valve Seat, outlet, ceramic	1

D03-125-2310	Washer, outlet dampening, Celcon	1
D03-125-2316	Washer, outlet dampening, Nylon	1
D03-125-2317	Washer, outlet dampening, polypropylene	1
D03-125-2318	Washer, outlet dampening, Kynar	1

D10-125-2310	Washer, inlet dampening, Celcon	1
D10-125-2316	Washer, inlet dampening, Nylon	1
D10-125-2317	Washer, inlet dampening, polypropylene	1
D10-125-2318	Washer, inlet dampening, Kynar	1

D10-035-2110	O-ring, inlet valve seat, Buna	1
D10-035-2111	O-ring, inlet valve seat, Viton	1
D10-035-2112	O-ring, inlet valve seat, Neoprene	1
D10-035-2113	O-ring, inlet valve seat, EPDM	1
D10-035-2118	O-ring, inlet valve seat, PTFE	1

D10-020-1010	Valve Seat, inlet, 17-4 SST, HT	1
D10-020-1011	Valve Seat, inlet, 316 SST	1
D10-020-1016	Valve Seat, inlet, Tungsten Carbide	1
D10-020-1017	Valve Seat, inlet, Hastelloy C	1
D10-020-3300	Valve Seat, inlet, ceramic	1

D10-092-2110	Tetra Seal, inlet, Buna	1
D10-092-2111	Tetra Seal, inlet, Viton	1
D10-092-2112	Tetra Seal, inlet, Neoprene	1
D10-092-2113	Tetra Seal, inlet, EPDM	1
D10-092-2118	Tetra Seal, inlet, PTFE	1

D10-021-1010	Inlet Valve, 17-7 SST, stamped HT	1
D10-021-1011	Inlet Valve, Nitronic	1
D10-021-1016	Inlet Valve, Tungsten Carbide	1
D10-021-1017	Inlet Valve, Hastelloy C	1
D10-021-3300	Inlet Valve, ceramic	1

D10-022-3113	Valve Spring, inlet, Hastelloy C (plastic retainers)	1
D10-022-3114	Valve Spring, inlet, Elgiloy (plastic retainers)	1
D10-022-3117	Valve Spring, inlet, Elgiloy (metal retainers)	1
D10-022-3123	Valve Spring, inlet, Hastelloy C (metal retainers)	1

D10-023-1010	Retainer, inlet valve spring, 17-7 SST	1
D10-023-1017	Retainer, inlet valve spring, Hastelloy C	1
D10-023-2314	Retainer, inlet valve spring, Celcon	1
D10-023-2316	Retainer, inlet valve spring, Nylon	1
D10-023-2317	Retainer, inlet valve spring, polypropylene	1
D10-023-2319	Retainer, inlet valve spring, Kynar	1

F20-074-2110	O-ring, inlet manifold, Buna	1
F20-074-2111	O-ring, inlet manifold, Viton	1
F20-074-2112	O-ring, inlet manifold, Neoprene	1
F20-074-2113	O-ring, inlet manifold, EPDM	1
F20-074-2118	O-ring, inlet manifold, PTFE	1

F20-073-2110	O-ring, outlet manifold, Buna	1
F20-073-2111	O-ring, outlet manifold, Viton	1
F20-073-2112	O-ring, outlet manifold, Neoprene	1
F20-073-2113	O-ring, outlet manifold, EPDM	1
F20-073-2118	O-ring, outlet manifold, PTFE	1

G20-029-2010 Cap Screw, socket-head 2

F20-003-1010	Valve Plate, brass	1
F20-003-1012	Valve Plate, 316 SST	1
F20-003-1017	Valve Plate, Hastelloy C	1
F20-003-1050	Valve Plate, polypropylene	1
F20-003-1053	Valve Plate, Kynar	1

D03-018-1212	Diaphragm, Neoprene	1
D03-018-1213	Diaphragm, EPDM	1
D03-018-1215	Diaphragm, Viton-XT	1
D03-018-1218	Diaphragm, PTFE	1
D03-018-1220	Diaphragm, Buna-N-XS	1

G20-088-2010 Cap-Screw, socket-head 2

F20-002-1010 Diaphragm Plate 1

D03-075-2110 O-ring, diaphragm plate, Buna 1

D03-048-2210 Snap Ring 1

D03-049-1000 Washer 1

D03-045-3110	Spring, sleeve valve	1
D03-045-3111	Spring, sleeve valve for PTFE diaphragm	1

D03-044-1000 Valve Plunger 1

D03-034-2110 O-ring, valve cylinder, Buna 1

D03-043-1000 Valve Cylinder 1

D10-015-3010 Ball 1

D03-014-1004 Piston 1

D03-014-1210 Piston Assembly 1

F-20 / F-21 / F-22 Hydraulic End Parts

F20 Hydra-Cell Pro Pump Hydraulic End Diagram

Ref. No. Part Number Description Qty/Pump

G20-089-2010 Screw, flat-head 6

F20-120-1010 Flange 1

G20-086-2010 Cap Screw, hex-flange-head 6

F20-036-2110 O-ring, back cover screws, Buna 6

G20-131-1010 Cover 1

F20-037-2110 O-ring, cover, Buna 1

F20-031-2110 Seal, Buna 1

D03-010-2910 Back Bearing 1

F20-009-1002	(E) Hollow Shaft, NEMA 56C direct drive, 5/8" ID, close-coupled, 0.73 GPM @ 1750 RPM	1
F20-009-1003	(X) Hollow Shaft, NEMA 56C direct drive, 5/8" ID, close-coupled, 0.96 GPM @ 1750 RPM	1
F20-009-1011	(B) Hollow Shaft, NEMA 56C direct drive, 5/8" ID, close-coupled, 0.33 GPM @ 1750 RPM	1
F20-009-1018	(S) Hollow Shaft, NEMA 56C direct drive, 5/8" ID, close-coupled, 0.55 GPM @ 1750 RPM	1
F20-009-1067	(G) Hollow Shaft, NEMA 56C direct drive, 5/8" ID, close-coupled, 0.20 GPM @ 1750 RPM	1
G20-009-1002	(E) Hollow Shaft, IEC80 direct drive, 19mm ID, close-coupled, 2.20 LPM @ 1450 RPM	1
G20-009-1003	(X) Hollow Shaft, IEC80 direct drive, 19mm ID, close-coupled, 2.90 LPM @ 1450 RPM	1
G20-009-1011	(B) Hollow Shaft, IEC80 direct drive, 19mm ID, close-coupled, 1.00 LPM @ 1450 RPM	1
G20-009-1018	(S) Hollow Shaft, IEC80 direct drive, 19mm ID, close-coupled, 1.60 LPM @ 1450 RPM	1
G20-009-1067	(G) Hollow Shaft, IEC80 direct drive, 19mm ID, close-coupled, 0.60 LPM @ 1450 RPM	1

D03-132-1000 Connecting Rod 1

F20-010-2910 Front Bearing 1

D03-133-1000 Pin 1

G20-001-1010 Pump Housing 1

F21-009-1002	(E) Crank Shaft, shaft-driven, 5/8" OD, 0.73 GPM @ 1750 RPM	1
F21-009-1003	(X) Crank Shaft, shaft-driven, 5/8" OD, 0.96 GPM @ 1750 RPM	1
F21-009-1011	(B) Crank Shaft, shaft-driven, 5/8" OD, 0.33 GPM @ 1750 RPM	1
F21-009-1018	(S) Crank Shaft, shaft-driven, 5/8" OD, 0.55 GPM @ 1750 RPM	1
F21-009-1067	(G) Crank Shaft, shaft-driven, 5/8" OD, 0.20 GPM @ 1750 RPM	1
G21-009-1002	(E) Crank Shaft, shaft-driven, 19mm OD, 2.20 GPM @ 1450 RPM	1
G21-009-1003	(X) Crank Shaft, shaft-driven, 19mm OD, 2.90 GPM @ 1450 RPM	1
G21-009-1011	(B) Crank Shaft, shaft-driven, 19mm OD, 1.00 GPM @ 1450 RPM	1
G21-009-1018	(S) Crank Shaft, shaft-driven, 19mm OD, 1.60 GPM @ 1450 RPM	1
G21-009-1067	(G) Crank Shaft, shaft-driven, 19mm OD, 0.60 GPM @ 1450 RPM	1

D10-085-2210 Key, shaft 1

G21-001-1010 Pump Housing 1

D10-048-2010 Lockwasher, 3/8" 4

D10-038-2210 Plug, drain 1

F20-105-1010 Cover, oil reservoir 1

F20-091-1010 Diaphragm, oil reservoir 1

G20-090-2010 Cap Screw, hex-head 4

D10-029-2010 Cap Screw, hex-head, 3/8-16 x 1" 4

F-21 / F-22 Pump/Motor Adapter Kit for NEMA 56C-145TC

Complete Kit Part No: A04-005-1200

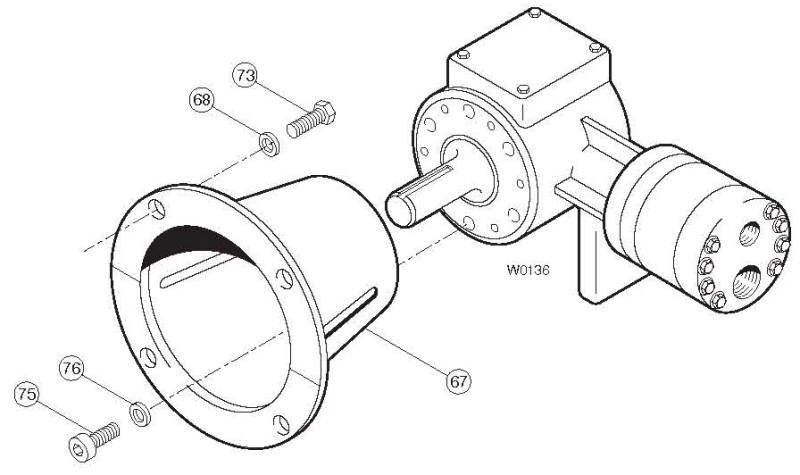

F20 Hydra-Cell Pro Pump Adapter Kit Parts

Ref. No. Part Number Description Qty/Kit

F20-121-1010 Pump/Motor Adapter 1

D10-048-2010 Lockwasher, split 4

D10-029-2010 Cap Screw, hex-head 4

G20-101-2010 Cap Screw, socket-head 6

G20-050-2010 Lockwasher, split 6
