Wanner™ Hydra-Cell® Pro D66 Parts Manual

Name: Hydra-Cell D66 Pump Parts Manual
Brand: Hydra-Cell
SKU: Hydra-Cell-D66-Parts
Availability: InStock

Complete parts lists for the D66 Series: Metallic Fluid Ends, Non-Metallic Fluid Ends, and Hydraulic Ends.

Need Assistance Finding the Right Part?

Our sales engineers can help you configure the exact repair kit for your pump's serial number and fluid application.

Call 908.362.9981 Request a Quote

Use the Navigation buttons to jump to the desired section:

Fluid End (Alloy) Fluid End (Non-Alloy) Hydraulic End

D/G-66 Fluid End Parts - Metallic

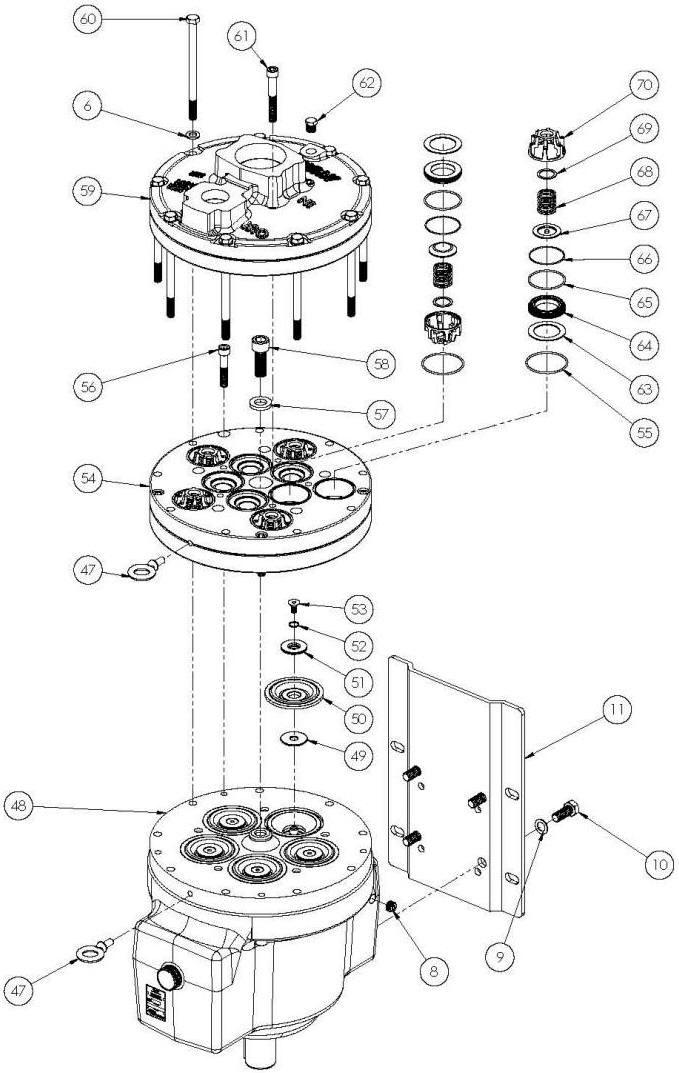

D66 Hydra-Cell Pro Metallic Fluid End Diagram

Ref. No. Part Number Description Qty/Pump

D40-048-2010 Hardened Washer, 1/2" 9

D25-038-2211 Plug, 3/8 NPT 2

D40-054-2010 Lockwasher, 5/8 4

D40-087-2010 Screw, 5/8 HHCS 4

D40-025-1010 Baseplate 1

D40-102-2000 Eyebolt, 7/16, Wanner Blue 2

D66-002-1020 Cylinder Housing 1

D66-016-1010 Plunger 5

D66-018-2320	Diaphragm, Buna-N, 4"	5
D66-018-2315	Diaphragm, FKM, 4"	5
D66-018-2313	Diaphragm, EPDM, 4"	5

D66-017-1010	Follower, SS 316	5
D66-017-1011	Follower, Hastelloy C276	5

D40-047-2110	O-Ring, Buna-N	5
D40-047-2111	O-Ring, FKM	5
D40-047-2113	O-Ring, EPDM	5

D40-030-2010	Screw, 3/8 FHSC, SST	5
D40-030-2017	Screw, 3/8 FHMS, T40, Hastelloy	5

D66-003-1007	Valve Plate, Iron	1
D66-003-1002	Valve Plate, SS 316	1
D66-003-1003	Valve Plate, Brass	1
D66-003-1029	Valve Plate, Duplex 2205 SST	1
D66-003-1010	Valve Plate, NAB	1

D66-085-2110	O-Ring, Buna-N	10
D66-085-2111	O-Ring, FKM	10
D66-085-2113	O-Ring, EPDM	10

D40-101-2010 Screw, 1/2 SHCS 9

D66-048-2024 Washer, 3/4" 1

D66-081-2026 Screw, 3/4 SHCS 1

D66-004-1029	Manifold, Ductile Iron, SAE	1
D66-004-1030	Manifold, Ductile Iron, NPT	1
G66-004-1030	Manifold, Ductile Iron, BSPT	1
D66-004-1032	Manifold, SS 316, SAE	1
D66-004-1033	Manifold, SS 316, NPT	1
G66-004-1033	Manifold, SS 316, BSPT	1
D66-004-1038	Manifold, Manganese Bronze, SAE	1
D66-004-1039	Manifold, Manganese Bronze, NPT	1
G66-004-1039	Manifold, Manganese Bronze, BSPT	1
D66-004-1036	Manifold, Duplex 2205 SST, SAE	1
D66-004-1037	Manifold, Duplex 2205 SST, NPT	1
G66-004-1037	Manifold, Duplex 2205 SST, BSPT	1

D66-048-2014 Screw, 1/2 HHCS 9

D66-029-2019 Screw, 1/2" SHCS 5

D25-038-2210	Fitting, Plug Pipe, 3/8 NPT, Brass	1
D25-038-2211	Fitting, Plug Pipe, 3/8 NPT, 316 SST	1

D40-125-2310	Washer, Dampening, Celcon	10
D40-125-2318	Washer, Dampening, PVDF	10

D66-020-1010	Valve Seat, 17-4 PH	10
D66-020-1011	Valve Seat, Nitronic 50	10
D66-020-1017	Valve Seat, Hastelloy C276	10

D40-035-2110	O-Ring, Buna-N	10
D40-035-2111	O-Ring, FKM	10
D40-035-2113	O-Ring, EPDM	10

D40-092-2110	O-Ring, Buna-N	10
D40-092-2111	O-Ring, FKM	10
D40-092-2113	O-Ring, EPDM	10

D66-021-1015	Disc, Valve, 17-4 PH	10
D66-021-1011	Disc, Valve, Nitronic 50	10
D66-021-1017	Disc, Valve, Hastelloy C276	10

D40-022-3110	Spring, 17-7 PH	10
D40-022-3118	Spring Elgiloy	10
D40-022-3119	Spring, Hastelloy	10

D40-123-1010	Washer, Valve Spring, SS 316	10
D40-123-1017	Washer, Valve Spring, Hastelloy	10

D66-023-2310	Valve Spring Retainer, Celcon	10
D66-023-2328	Valve Spring Retainer, PVDF	10

D/G-66 Fluid End Parts - Non-Metallic

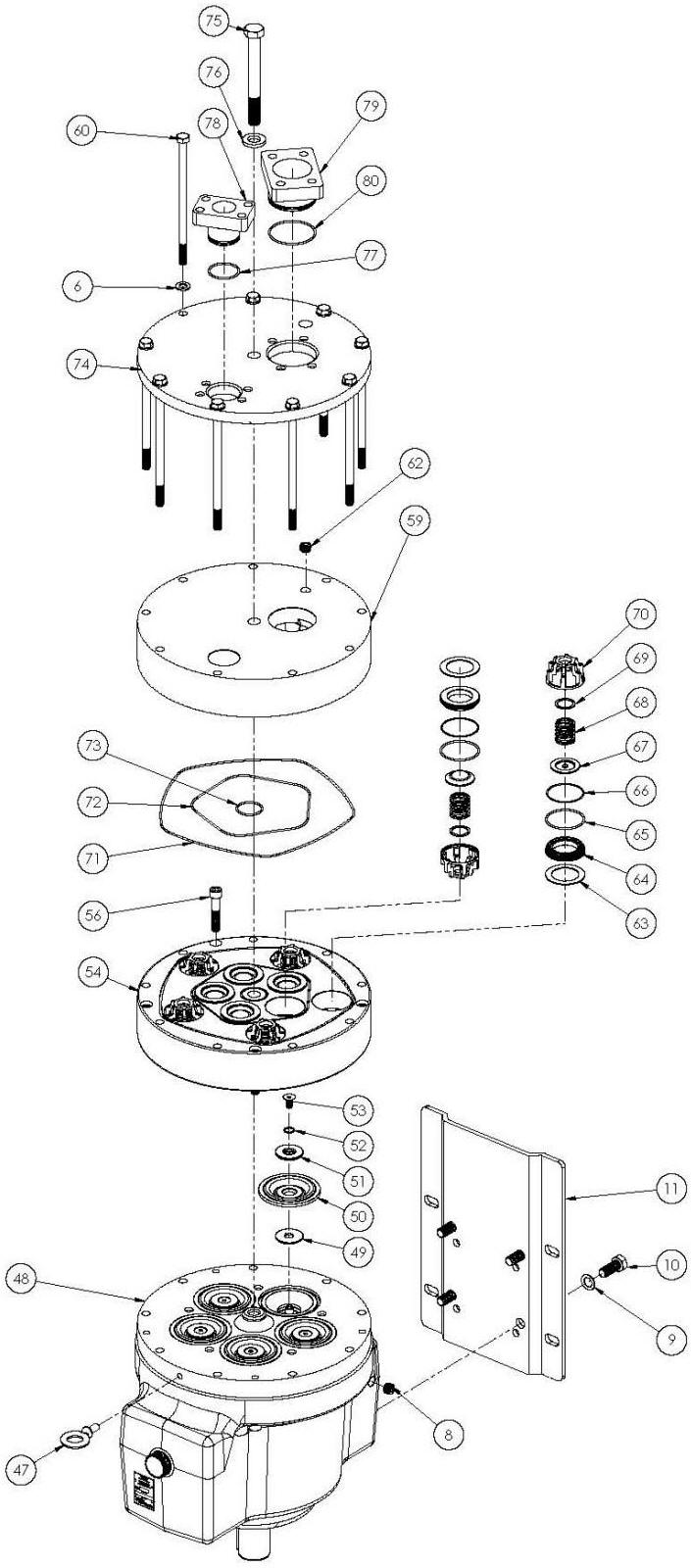

D66 Hydra-Cell Pro Non-Metallic Fluid End Diagram

Ref. No. Part Number Description Qty/Pump

D40-048-2010 Hardened Washer, 1/2" 9

D25-038-2211 Plug, 3/8 NPT 2

D40-054-2010 Lockwasher, 5/8 4

D40-087-2010 Screw, 5/8 HHCS 4

D40-025-1010 Baseplate 1

D40-102-2000 Eyebolt, 7/16, Wanner Blue 1

D66-002-1020 Cylinder Housing 1

D66-016-1010 Plunger 5

D66-018-2320	Diaphragm, Buna-N, 4"	5
D66-018-2315	Diaphragm, FKM, 4"	5
D66-018-2313	Diaphragm, EPDM, 4"	5

D66-017-1010	Follower, SS 316	5
D66-017-1011	Follower, Hastelloy C276	5

D40-047-2110	O-Ring, Buna-N	5
D40-047-2111	O-Ring, FKM	5
D40-047-2113	O-Ring, EPDM	5

D40-030-2010	Screw, 3/8 FHSC, SST	5
D40-030-2017	Screw, 3/8 FHMS, T40, Hastelloy	5

D66-003-1050 Valve Plate, Polypropylene 1

D40-101-2010 Screw, 1/2 SHCS 4

D66-004-1050 Manifold, Polypropylene 1

D66-029-2020 Screw, 1/2 HHCS 9

D66-038-2015 Pipe Plug, 3/8-18, Polypropylene 1

D40-125-2310	Washer, Dampening, Celcon	10
D40-125-2318	Washer, Dampening, PVDF	10

D66-020-1010	Valve Seat, 17-4 PH	10
D66-020-1011	Valve Seat, Nitronic 50	10
D66-020-1017	Valve Seat, Hastelloy C276	10

D40-035-2110	O-Ring, Buna-N	10
D40-035-2111	O-Ring, FKM	10
D40-035-2113	O-Ring, EPDM	10

D40-092-2110	O-Ring, Buna-N	10
D40-092-2111	O-Ring, FKM	10
D40-092-2113	O-Ring, EPDM	10

D66-021-1015	Disc, Valve, 17-4 PH	10
D66-021-1011	Disc, Valve, Nitronic 50	10
D66-021-1017	Disc, Valve, Hastelloy C276	10
D66-021-3300	Disc, Valve, Ceramic	10

D40-022-3110	Spring, 17-7 PH	10
D40-022-3118	Spring Elgiloy	10
D40-022-3119	Spring, Hastelloy	10

D40-123-1010	Washer, Valve Spring, SS 316	10
D40-123-1017	Washer, Valve Spring, Hastelloy	10

D66-023-2310	Valve Spring Retainer, Celcon	10
D66-023-2328	Valve Spring Retainer, PVDF	10

D66-081-2110	O-Ring, Buna-N	1
D66-081-2111	O-Ring, FKM	1
D66-081-2113	O-Ring, EPDM	1

D66-080-2110	O-Ring, Buna-N	1
D66-080-2111	O-Ring, FKM	1
D66-080-2113	O-Ring, EPDM	1

D66-084-2110	O-Ring, Buna-N	1
D66-084-2111	O-Ring, FKM	1
D66-084-2113	O-Ring, EPDM	1

D66-100-1011 Support Plate 1

D66-031-2020 Screw, 3/4 HHCS 1

D66-048-2024 Washer, 3/4" 1

D66-083-2110	O-Ring, Buna-N	1
D66-083-2111	O-Ring, FKM	1
D66-083-2113	O-Ring, EPDM	1

D66-200-0107 Adapter, SAE Outlet 1

D66-200-0106 Adapter, SAE Inlet 1

D66-082-2110	O-Ring, Buna-N	1
D66-082-2111	O-Ring, FKM	1
D66-082-2113	O-Ring, EPDM	1

D/G-66 Hydraulic End Parts

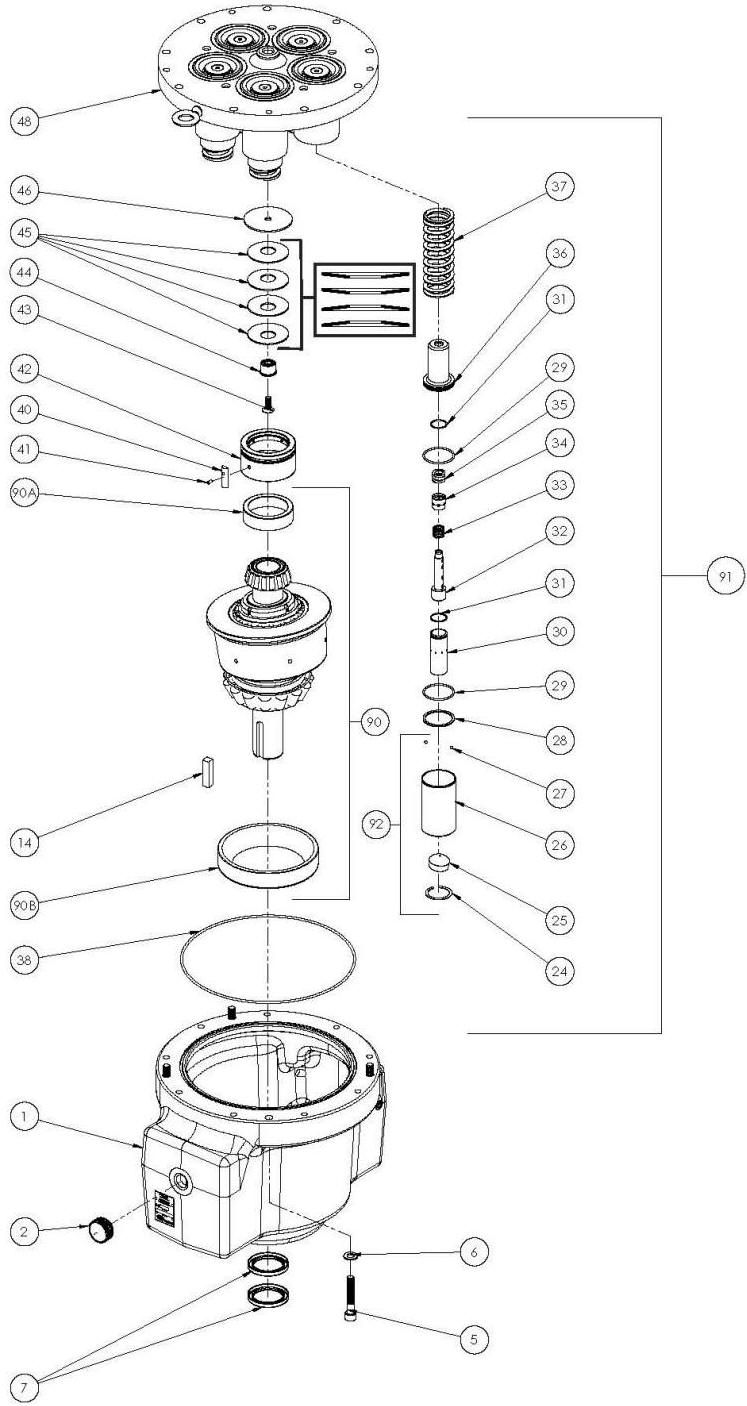

D66 Hydra-Cell Pro Hydraulic End Diagram

Ref. No. Part Number Description Qty/Pump

D66-001-1010 Housing 1

D03-039-1030 Assembly, Oil Cap with O-ring 1

D40-101-2040 Screw, 1/2 SHCS 4

D40-048-2010 Hardened Washer, 1/2" 4

D40-031-2110 Shaft Seal 2

D40-085-2210 Shaft Key 1

D40-050-1010 Retainer, Foot 5

D40-013-1010 Foot 5

D66-014-1010 Piston 5

D10-015-3010 Ball, .1875 Dia 10

D40-041-1010 Retainer, Ball 5

D40-034-2110 O-Ring, Buna-N 10

D66-043-1010 Valve Cylinder 5

D10-034-2110 O-Ring, Buna-N 10

D40-044-1010 Valve Plunger 5

D66-019-3110 Spring, Low Pressure Bias 5

D66-005-1000 Separator, Kel-Cell 5

D66-019-3112 Spring 5

D66-042-1010 Retainer, Return Spring 5

D40-019-3112 Spring, Piston Return 5

D40-037-2110 O-Ring, Buna-N 1

D35-113-1010 Key, Round Radius 1

D35-110-2011 Pin Dowel, 3/16" 1

D35-012-1011 Bearing Carrier 1

G35-115-2011 Screw, M10 SFHC 1

D35-112-1011 Guide, Disc Spring 1

D40-075-3110 Spring Disc Adjusting Plate 4

D35-116-1010 Backup Washer 1

D66-002-1020 Cylinder Housing 1

D66-007-1220 Cam Assembly 1

D66-014-1210 Piston Assembly 5

D66-014-1209 Foot Piston Assembly 5
