D12 Hydra-Cell Pro Pump Parts List
Use sub menu below to jump to the desired table
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer
D/G-12 Fluid End Parts List
| Ref # | Part Number | Description | Qty/Pump |
|---|---|---|---|
| 1 | G10-081-2010 | Cap Screw, socket-head, M12 x 1.25 x 70 mm | 1 |
| 2 | G10-084-2010 | Washer, flat | 1 |
| 3 |
D10-038-2210 D10-038-2211 G10-038-2211 |
Plug, brass, NPT Plug, SST, NPT Plug, SST, BSPT |
1 1 1 |
| 4 | G10-024-2011 | Cap Screw, socket-head, M10 x 1.5 x 90 mm | 6 |
| 5 | G25-048-2010 | Washer, split-lock | 6 |
| 6 | D10-004-1002 | Manifold, 316 SST, NPT | 1 |
| D10-004-1008 | Manifold, brass, NPT | 1 | |
| D10-004-1034 | Manifold, cast iron, NPT | 1 | |
| G10-004-1002 | Manifold, 316 SST, BSPT | 1 | |
| G10-004-1008 | Manifold, brass, BSPT | 1 | |
| G10-004-1034 | Manifold, cast iron, BSPT | 1 | |
| 7 | D10-083-2110 | O-ring, center bolt, Buna | 1 |
| D10-083-2111 | O-ring, center bolt, Viton | 1 | |
| D10-083-2112 | O-ring, center bolt, Neoprene | 1 | |
| D10-083-2113 | O-ring, center bolt, EPDM | 1 | |
| D10-083-2118 | O-ring, center bolt, Teflon | 1 | |
| 8 | D10-073-2118 | O-ring, inner manifold, Teflon | 1 |
| D11-073-2120 | O-ring, inner manifold, Buna | 1 | |
| D11-073-2121 | O-ring, inner manifold, Viton | 1 | |
| D11-073-2122 | O-ring, inner manifold, Neoprene | 1 | |
| D11-073-2123 | O-ring, inner manifold, EPDM | 1 | |
| 9 | D10-074-2118 | O-ring, outer manifold, Teflon | 1 |
| D11-074-2120 | O-ring, outer manifold, Buna | 1 | |
| D11-074-2121 | O-ring, outer manifold, Viton | 1 | |
| D11-074-2122 | O-ring, outer manifold, Neoprene | 1 | |
| D11-074-2123 | O-ring, outer manifold, EPDM | 1 | |
| 10 | D10-035-2110 | O-ring, valve seat, Buna | 6 |
| D10-035-2111 | O-ring, valve seat, Viton | 6 | |
| D10-035-2112 | O-ring, valve seat, Neoprene | 6 | |
| D10-035-2113 | O-ring, valve seat, EPDM | 6 | |
| D10-035-2118 | O-ring, valve seat, Teflon | 6 | |
| 11 | D10-020-1010 | Valve Seat, 17-4 SST, HT | 6 |
| D10-020-1011 | Valve Seat, 316 SST | 6 | |
| D10-020-1017 | Valve Seat, Hastelloy C | 6 | |
| D10-020-3300 | Valve Seat, ceramic | 6 | |
| 12 | D10-021-1011 | Valve, Nitronic | 6 |
| D10-021-1015 | Valve, 17-4 SST, machined, HT | 6 | |
| D10-021-1017 | Valve, Hastelloy C | 6 | |
| D10-021-3300 | Valve, ceramic | 6 | |
| 13 | D10-022-3117 | Valve Spring, Elgiloy | 6 |
| D10-022-3123 | Valve Spring, Hastelloy C | 6 | |
| 14 | D10-092-2110 | Tetra Seal, Buna | 6 |
| D10-092-2111 | Tetra Seal, Viton | 6 | |
| D10-092-2112 | Tetra Seal, Neoprene | 6 | |
| D10-092-2113 | Tetra Seal, EPDM | 6 | |
| D10-092-2118 | Tetra Seal, Teflon | 6 | |
| 15 | D10-023-1010 | Retainer, valve spring, 17-7 SST | 6 |
| D10-023-1017 | Retainer, valve spring, Hastelloy C | 6 | |
| D10-023-2310 | Retainer, valve spring, Celcon | 6 | |
| D10-023-2326 | Retainer, valve spring, nylon | 6 | |
| D10-023-2327 | Retainer, valve spring, polypropylene | 6 | |
| D10-023-2328 | Retainer, valve spring, Kynar | 6 | |
| 16 | D10-003-1011 | Valve Plate, brass | 1 |
| D10-003-1012 | Valve Plate, 316 SST | 1 | |
| D10-003-1019 | Valve Plate, cast iron | 1 | |
| 17 | D10-030-2010 | Screw, flat-head, 316 SST | 3 |
| 18 | D10-047-2110 | O-ring, follower, Buna-N | 3 |
| D10-047-2111 | O-ring, follower, Viton | 3 | |
| D10-047-2112 | O-ring, follower, Neoprene | 3 | |
| D10-047-2113 | O-ring, follower, EPDM | 3 | |
| D10-047-2118 | O-ring, follower, Teflon | 3 | |
| 19 | D10-017-1010 | Follower, 316 SST | 3 |
| 20 | D10-018-2312 | Diaphragm, Neoprene | 3 |
| D10-018-2313 | Diaphragm, EPDM | 3 | |
| D10-018-2315 | Diaphragm, Viton-XT | 3 | |
| D10-018-2318 | Diaphragm, Teflon | 3 | |
| D10-018-2320 | Diaphragm, Buna-N-XS | 3 | |
| 21 | D10-016-1010 | Plunger | 3 |
| 22 | G10-082-2010 | Set Screw, M6 x 1 x 10mm | 3 |
| 23 | G10-088-2010 | Cap Screw, socket-head, M6 x 1 x 30 mm | 2 |
| 24 | G10-002-1010 | Cylinder Housing | 1 |
| G10-002-1210 | Cylinder Housing Assembly, Buna | 1 | |
| K10-002-1020 | Cylinder Housing, Kel-Cell | 1 | |
| K10-002-1220 | Cylinder Housing Assembly, Kel-Cell | 1 | |
| 25 | G20-090-2010 | Screw, M4 x 10 mm | 4 |
| 26 | D12-140-2410 | Cover, caution | 1 |
| 27 | D12-121-2111 | O-ring, Viton | 2 |
| 28 | D12-111-2211 | Plug | 1 |
| 29 | D12-116-2210 | Reservoir, oil | 1 |
| 30 | D12-111-2210 | Plug, magnetic | 1 |
| 31 | G10-028-2010 | Nut, hex, M10 | 6 |
| 32 | D12-115-2210 | Hinge | 2 |
| 33 | G03-088-2010 | Bolt, M6 x 20 mm | 6 |
| 34 | G12-108-2010 | Nut, lock, M6 | 6 |
| 35 | M10-110-2000 | Bolt, 1/2" x 1-1/2" | 4 |
| A04-043-2010 | Bolt, M12 x 40 mm (for metric motors) | 4 | |
| 36 | M10-111-2000 | Washer, lock, 1/2" | 4 |
| 37 | A04-045-2010 | Nut, M12 (for metric motors) | 4 |
| 38 | G10-088-2020 | Screw, Flathead, M10 x 30 mm | 2 |
| 40 | D12-001-1011 | Pump Housing | 1 |
| D12-001-1211 | Pump Housing Assembly | 1 | |
| G12-001-1012 | Pump Housing (for metric motors) | 1 | |
| G12-001-1212 | Pump Housing Assembly (for metric motors) | 1 |
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

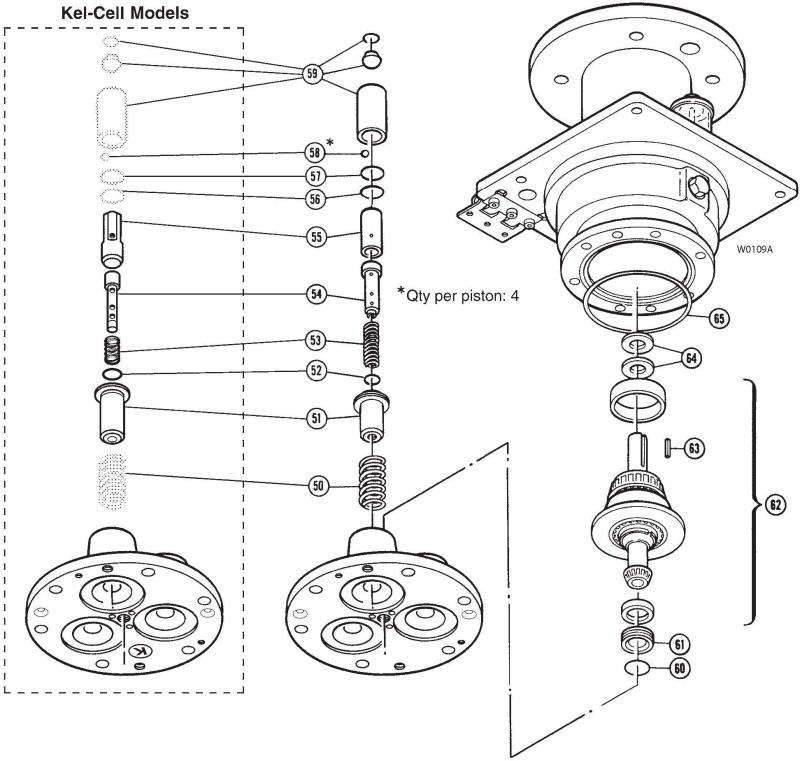

D/G-12 Hydraulic End Parts List
| Ref# | Part Number | Description | QTY/Pump |
|---|---|---|---|
| 50 | D10-019-3110 | Spring, piston return | 3 |
| 51 | D10-042-1010 | Retainer, spring | 3 |
| K10-042-1010 | Retainer, spring, Kel-Cell¹ | 3 | |
| 52 | D10-046-2110 | O-ring, valve cylinder, Buna | 3 |
| C23-009-2110 | O-ring, valve cylinder, Buna, Kel-Cell¹ | 3 | |
| 53 | D10-045-3110 | Spring, sleeve valve | 3 |
| D10-045-3111 | Spring, sleeve valve (Teflon diaphragm) | 3 | |
| K10-045-3110 | Spring, sleeve valve, Kel-Cell¹ | 3 | |
| 54 | D10-044-1010 | Valve Plunger | 3 |
| K10-044-1010 | Valve Plunger, Kel-Cell¹ | 3 | |
| 55 | D10-043-1010 | Cylinder, valve | 3 |
| K10-043-1010 | Cylinder, valve, Kel-Cell¹ | 3 | |
| 56 | D10-034-2110 | O-ring, Buna | 3 |
| 57 | D10-041-1010 | Washer, ball retainer | 3 |
| 58 | D10-015-3010 | Ball | 12 |
| 59 | D10-014-1209 | Piston, with foot and retainer | 3 |
| D10-014-1210 | Piston Assembly, Buna² | 3 | |
| K10-014-1210 | Piston Assembly, Kel-Cell¹² | 3 | |
| 60 | D10-075-2110 | O-ring, bearing adjusting plate, Buna | 1 |
| 61 | D10-012-1010 | Bearing Adjusting Plate | 1 |
| 62 | D10-007-1210 | Cam Assembly (X)³, 8 gpm (30.3 lpm) @1450 rpm | 1 |
| D10-007-1211 | Cam Assembly (I)³, 4 gpm (15.1 lpm) @1750 rpm | 1 | |
| D10-007-1212 | Cam Assembly (S)³, 6 gpm (22.7 lpm) @1750 rpm | 1 | |
| D10-007-1214 | Cam Assembly (E)³, 8 gpm (30.3 lpm) @1750 rpm | 1 | |
| 63 | D10-085-2210 | Key, shaft | 1 |
| 64 | D10-031-2120 | Seal, Buna | 2 |
| 65 | D10-037-2110 | O-ring, pump housing, Buna | 1 |
| D10-111-2401 | Label, caution | 1 | |
| D10-111-2402 | Label, caution | 1 |
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer
Tube Accessory Parts List
| Ref# | Part Number | Description | QTY/Pump |
|---|---|---|---|
| 1 | D12-112-2210 | Elbow, 90°, flare, 3/4" NPT | 1 |
| G12-112-2210 | Elbow, 90°, flare, 1/2" BSPT | 1 | |
| 2 | G12-122-2210 | Bushing, reducer, 1/2" to 3/4" BSPT | 1 |
| 3 | D12-113-1210 | Tube Assembly, pressure | 1 |
| 4 | D12-120-2210 | Union, bulkhead, NPT, with nut | 1 |
| G12-120-2210 | Union, bulkhead, BSPT, with nut | 1 | |
| 5 | D12-107-2010 | Bolt, hex, 3/4" x 1-1/4" | 1 |
| 6 | D12-106-2010 | Nut, hex, 3/4" | 1 |
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

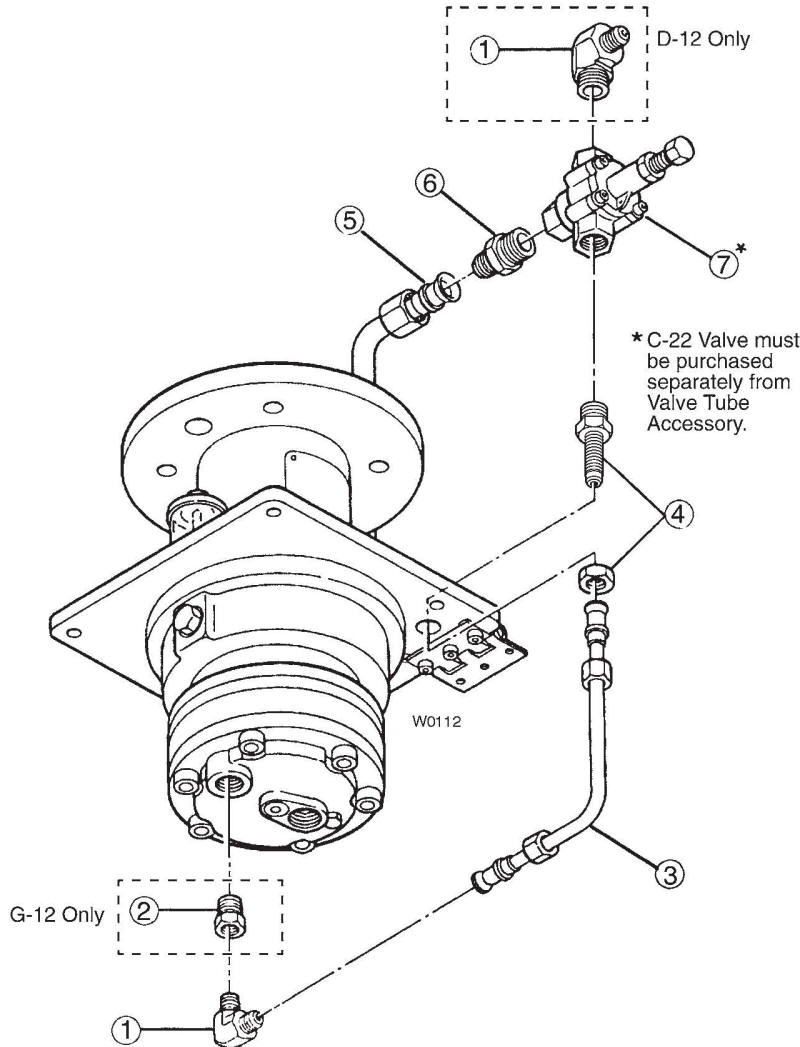

Valve Tube Accessory Parts List
| Ref# | Part Number | Description | QTY/Pump |
|---|---|---|---|
| 1 | D12-112-2210 | Elbow, 90°, flare, 3/4" NPT | 2 |
| G12-112-2210 | Elbow, 90°, flare, 1/2" BSPT | 1 | |
| 2 | G12-122-2210 | Bushing, reducer, 1/2" to 3/4" BSPT | 1 |
| 3 | D12-113-1210 | Tube Assembly, pressure | 1 |
| 4 | D12-120-2210 | Union, bulkhead, NPT, with nut | 1 |
| G12-120-2210 | Union, bulkhead, BSPT, with nut | 1 | |
| 5 | D12-114-1210 | Tube Assembly, bypass | 1 |
| 6 | D12-117-2210 | Connector, male, flare, 3/4" NPT | 1 |
| G12-117-2210 | Connector, male flare, 3/4" BSPT | 1 | |
| 7 | C-22 Valve | [Refer to Valve Parts List for breakdown] | - |
